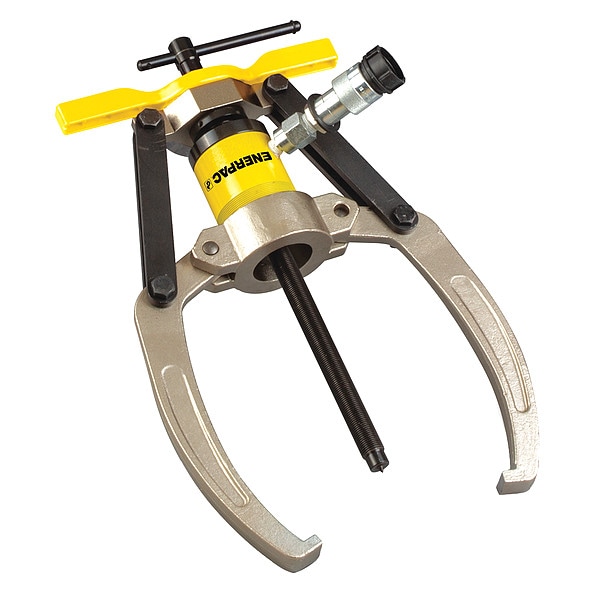

LGH224, 24 Ton, 2 Jaw, Hydraulic Lock-Grip Puller with RCH202 Hydraulic Cylinder
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 24 ton |
| Jaw Reach | 13.23 in |
| Application | For Pushing or Pulling |
| Stroke Length | 2 in |
| Min. Spread (In.) | 6-1/2 |
| Min. Jaw Spread | 6-1/2 in |
| Includes | Hollow Plunger Cylinder, Replacement Point Protector, Threaded Hollow Saddle |
| Max. Reach | 13.23 in |
| Max. Spread (In.) | 18.9 |
| Number of Jaws | 2 |
| Max. Jaw Spread | 18.9 in |
| Cylinder Nominal Capacity | 24 ton |
| Type | Hydraulic |
| Max. Pressure | 10,150 psi |
| Puller Model Number | 55PW13 |
| Weight | 82 lb |
| Capacity with Attachments | 24 ton |
| Maximum Operating Pressure | 10,150 psi |
| Series | LGH |
| Package Quantity | 1 |
