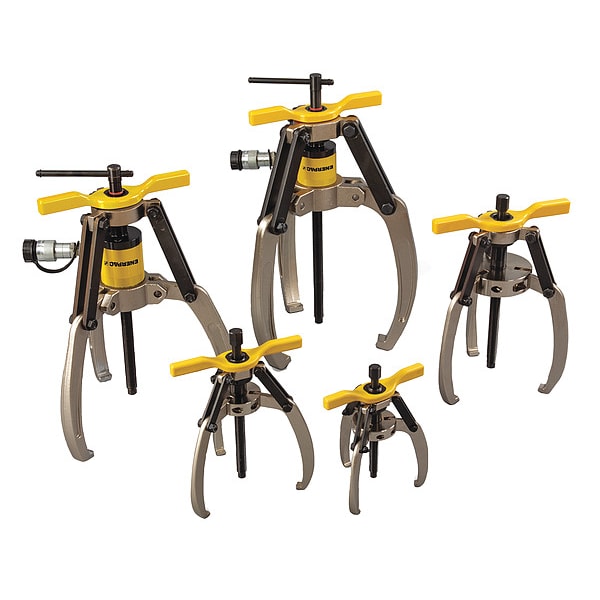

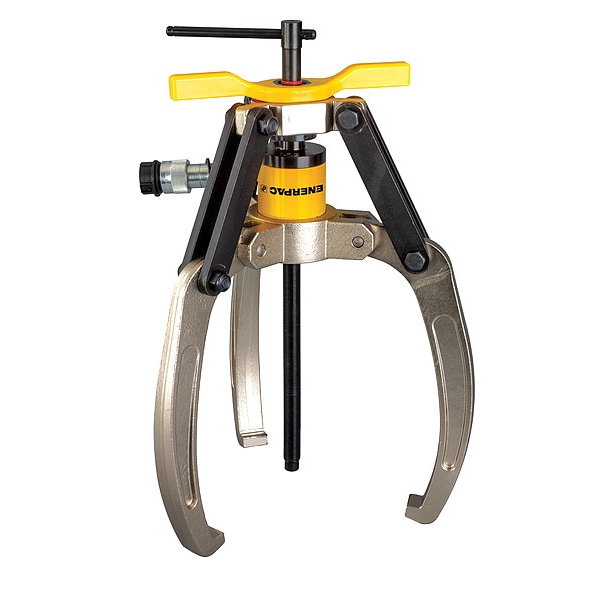

LGH314, 14 Ton, 3 Jaw, Hydraulic Lock-Grip Puller with RWH121 Hydraulic Cylinder
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 14 ton |
| Jaw Reach | 10.24 in |
| Application | For Pushing or Pulling |
| Capacity with Attachments | 14 ton |
| Max. Reach | 10.24 in |
| Cylinder Nominal Capacity | 14 ton |
| Puller Model Number | 55PW16 |
| Max. Jaw Spread | 14.96 in |
| Max. Spread (In.) | 14.96 |
| Number of Jaws | 3 |
| Min. Jaw Spread | 4.92 in |
| Min. Spread (In.) | 4.92 |
| Type | Hydraulic |
| Includes | Cylinder, Pressure Fitting, Replacement Point Protector |
| Weight | 40 lb |
| Stroke Length | 1 in |
| Max. Pressure | 10,150 psi |
| Series | LGH |
| Maximum Operating Pressure | 10,150 psi |
| Package Quantity | 1 |
