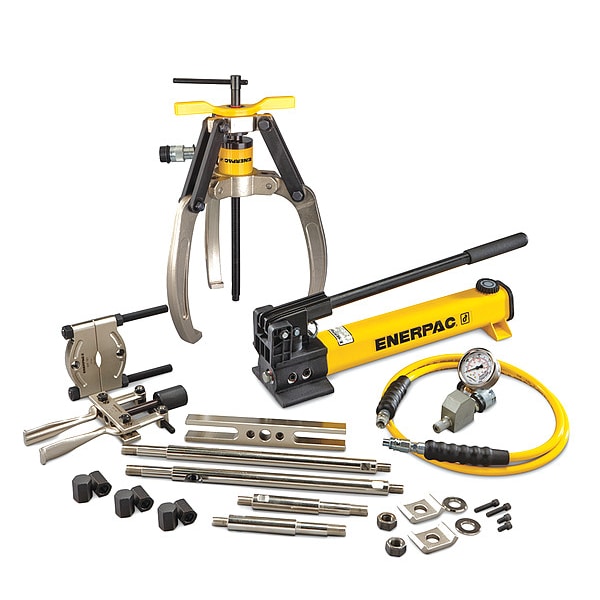

LGHMS310H, 10 Ton, 3 Jaw, Hydraulic Lock-Grip Master Puller Set with Hand Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 10 ton |
| Jaw Reach | 8.46 in |
| Application | For Pushing or Pulling |
| Includes | Bearing Cup Puller, Bearing Separator, Cross Bearing Puller, Gauge Adaptor Assembly, Hand Pump, Hose, Jaw Puller, Replacement Point Protector |
| Stroke Length | 1 in |
| Number of Jaws | 3 |
| Max. Pressure | 10,150 psi |
| Max. Jaw Spread | 11.81 in |
| Weight | 28 lb |
| Max. Spread (In.) | 11.81 |
| Min. Spread (In.) | 3.31 |
| Type | Hydraulic |
| Max. Reach | 8.46 in |
| Capacity with Attachments | 5 ton |
| Min. Jaw Spread | 3.31 in |
| Pump Model Number | 6W462 |
| Cylinder Nominal Capacity | 10 ton |
| Puller Model Number | 55PW15 |
| Maximum Operating Pressure | 10,150 psi |
| Maximum Capacity With Accessories | 7 ton |
| Series | LGHMS |
| Pump Power Source | Hand Pump |
| Package Quantity | 1 |
