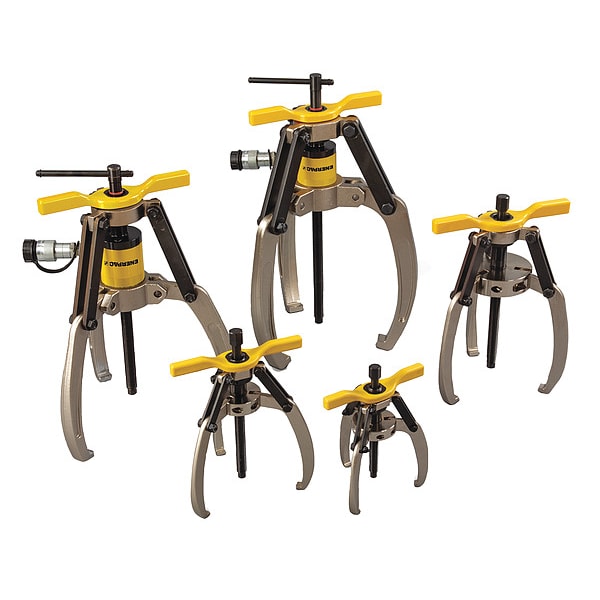

LGHMS314H, 14 Ton, 3 Jaw, Hydraulic Lock-Grip Master Puller Set with Hand Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 14 ton |
| Jaw Reach | 10.24 in |
| Application | For Pushing or Pulling |
| Min. Jaw Spread | 4.92 in |
| Cylinder Nominal Capacity | 14 ton |

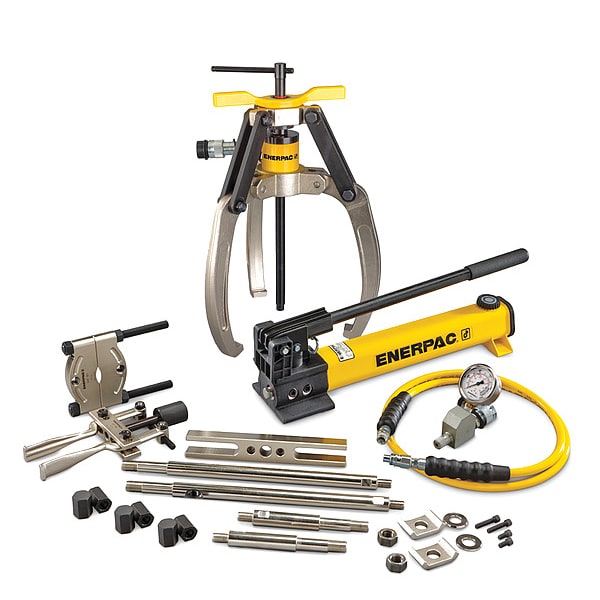

| Includes | Bearing Cup Puller, Bearing Separator, Cross Bearing Puller, Cylinder, Gauge Adaptor Assembly, Hand Pump, Hose, Jaw Puller, Pressure Fitting, Replacement Point Protector |
| Max. Spread (In.) | 14.96 |
| Min. Spread (In.) | 4.92 |
| Number of Jaws | 3 |
| Max. Pressure | 10,150 psi |
| Capacity with Attachments | 7 ton |
| Max. Reach | 10.24 in |
| Pump Model Number | 6W462 |
| Max. Jaw Spread | 14.96 in |
| Weight | 40 lb |
| Stroke Length | 1 in |
| Puller Model Number | 55PW16 |
| Type | Hydraulic |
| Series | LGHMS |
| Maximum Capacity With Accessories | 7 ton |
| Pump Power Source | Hand Pump |
| Maximum Operating Pressure | 10,150 psi |
| Package Quantity | 1 |
