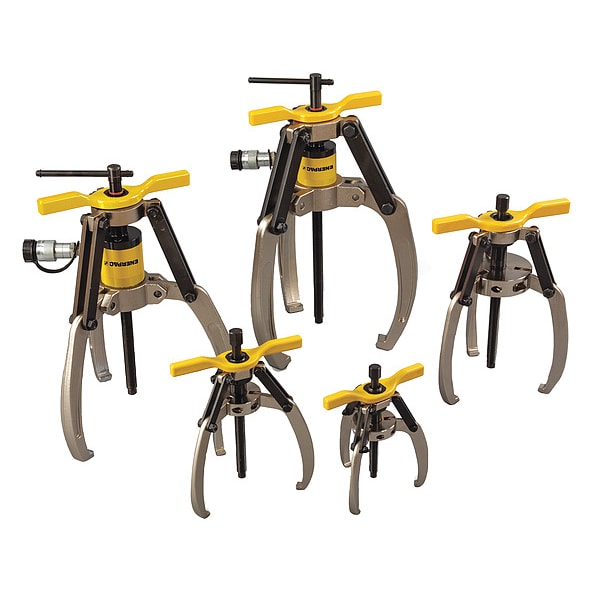

LGHMS324EB, 24 Ton, 3 Jaw, Hydraulic Lock-Grip Master Puller Set with Electric Pump, 115V
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 24 ton |
| Jaw Reach | 13.23 in |
| Application | For Pushing or Pulling |
| Pump Model Number | 26VY54 |
| Weight | 106 lb |
| Min. Jaw Spread | 6-1/2 in |
| Stroke Length | 2 in |
| Type | Hydraulic |
| Capacity with Attachments | 12 ton |

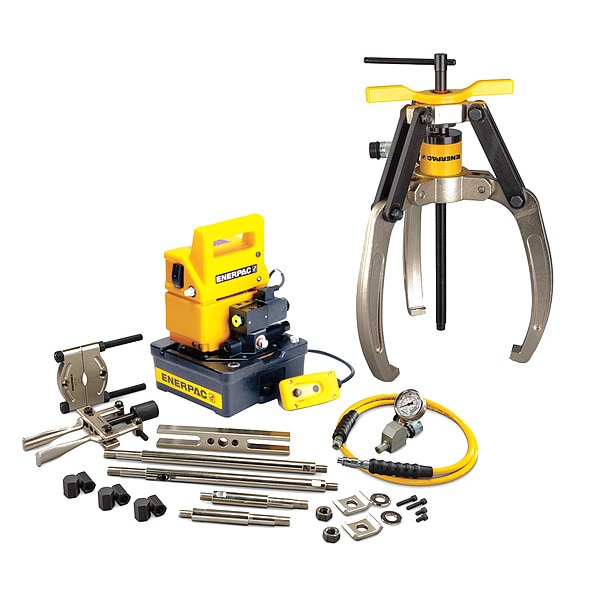

| Includes | Bearing Cup Puller, Bearing Separator, Cross Bearing Puller, Electric Pump, Hollow Plunger Cylinder, Hose, Jaw Puller, Pressure Gauge, Replacement Point Protector, Threaded Hollow Saddle |
| Max. Spread (In.) | 18.9 |
| Number of Jaws | 3 |
| Max. Reach | 13.23 in |
| Max. Pressure | 10,150 psi |
| Puller Model Number | 55PW17 |
| Min. Spread (In.) | 6-1/2 |
| Max. Jaw Spread | 18.9 in |
| Cylinder Nominal Capacity | 24 ton |
| Pump Power Source | Electric Pump |
| Series | LGHMS |
| Maximum Operating Pressure | 10,150 psi |
| Maximum Capacity With Accessories | 12 ton |
| Package Quantity | 1 |
