LGHMS364A, 64 Ton, 3 Jaw, Hydraulic Lock-Grip Master Puller Set with Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Hydraulic Puller Set |
| Capacity | 64 ton |
| Jaw Reach | 16.06 in |
| Application | For Pushing or Pulling |

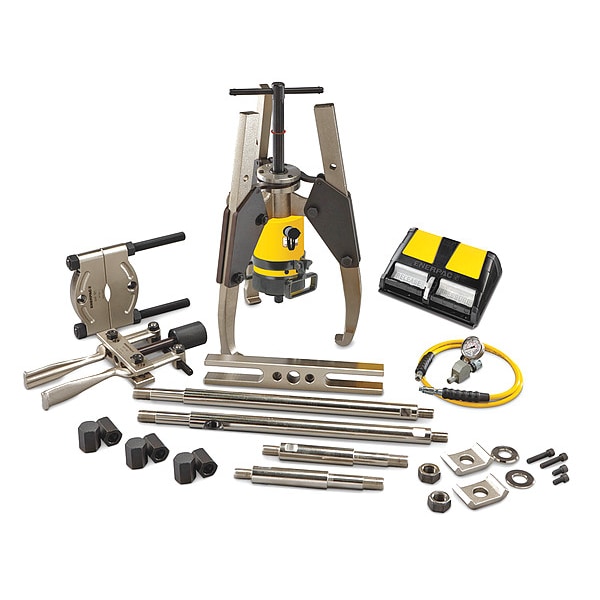

| Includes | Air Pump, Cross Bearing Puller. Bearing Separator. Bearing Cup Puller, Hollow Plunger Cylinder, Hose, Jaw Puller, Replacement Point Protector |
| Weight | 307 lb |
| Max. Spread (In.) | 25.98 |
| Max. Pressure | 10,150 psi |
| Number of Jaws | 3 |
| Max. Reach | 16.06 in |
| Capacity with Attachments | 25 ton |
| Stroke Length | 3 in |
| Min. Spread (In.) | 9.06 |
| Max. Jaw Spread | 25.98 in |
| Pump Model Number | 18Y553 |
| Cylinder Nominal Capacity | 64 ton |
| Puller Model Number | Mfr. No. LGH364 |
| Type | Hydraulic |
| Min. Jaw Spread | 9.06 in |
| Maximum Operating Pressure | 10,150 psi |
| Series | LGHMS |
| Maximum Capacity With Accessories | 25 ton |
| Pump Power Source | Air Pump |
| Package Quantity | 1 |
