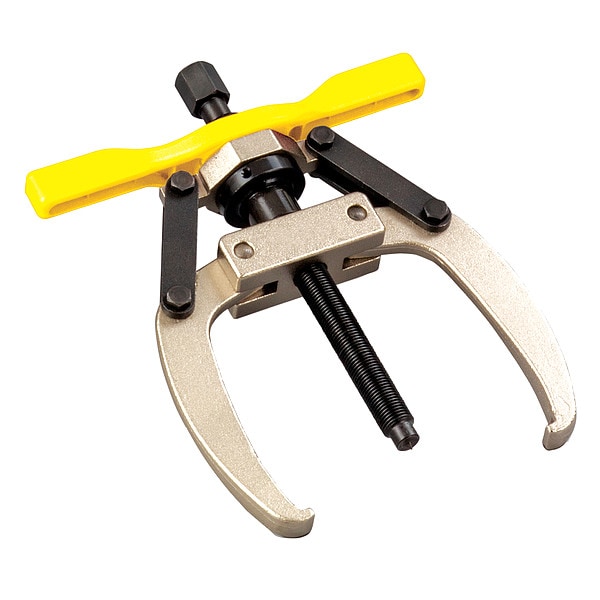

LGM204, 4 Ton, 2 Jaw, Mechanical Lock-Grip Puller
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Jaw Puller |
| Features | Self-Centering Closing System Allows All Jaws to Move Simultaneously Making It Easy for A Single Operator |
| Jaw Reach | 5-19/32 in |
| Capacity | 4 ton |
| For Use With | Small to Medium Size Wheels, Sprockets, Bearings |
| Jaw Style | Mechanical |
| Locking | Yes |
| Number of Jaws | 2 |
| Jaw Spread | 7-5/16 in |
| Puller Length | 5 5/8 in |
| Type | Mechanical |
| Min. Spread (In.) | 1.18 |
| Reach (In.) | 5.59 |
| Max. Spread (In.) | 7.32 |
| Application | Pull |
| Series | LGM |
| Maximum Torque | 50 ft-lb |
| Cylinder Nominal Capacity | 4 ton |
| Max. Jaw Spread | 7.32 in |
| Min. Jaw Spread | 1.18 in |
| Stroke Length | 5-5/8 in |
| Package Quantity | 1 |
