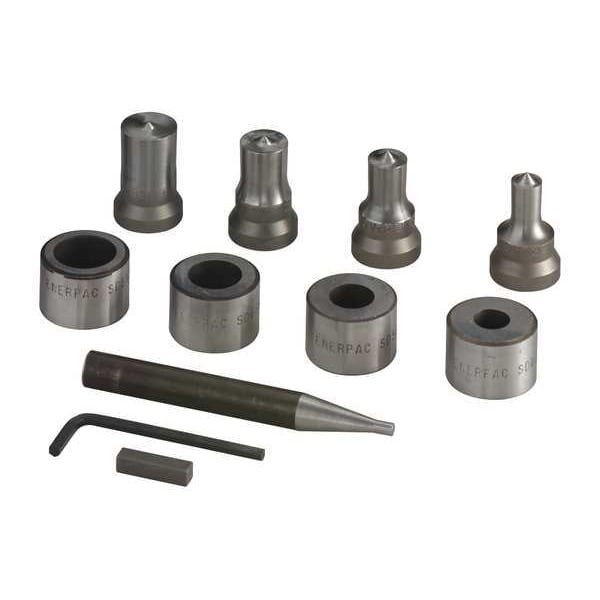

MSP351, 35 Ton, Hydraulic Punch and Metric Die Set
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Metric Punch and Die Set |
| Hole Size (In.) | 0.31 to 0.81 in |
| Application | Punching |
| Stainless 302 Annealed | 0.31, 0.38, 0.4 |
| Hot Rolled C-1095 Annealed | 0.25, 0.31 |
| Struct CORTEN ASTM A242 | 0.31, 0.38, 0.44 |
| Standard Bolt Size (In.) | 5/16, 3/8, 7/16, 5/8 |
| Stainless 304 Hot Rolled | 0.31, 0.38, 0.4 |
| Bolt Size (In.) | 5/16, 3/8, 7/16, 5/8 |
| Boilerplate | 0.38 in, 0.44 in, 1/2 in |
| Hot Rolled C-1095 | 0.19, 0.25 |
| Stainless 316 Cold Rolled | 0.31, 0.38, 0.4 |
| Includes | CR400 Coupler |
| Standard Hole Size (In.) | 0.31 - 0.81 in |
| Hot Rolled C-1050 | 0.31, 0.38, 0.4 |
| Mild A-7 | 0.5 |
| Working Pressure (PSI) | 10,000 psi |
| Cold Rolled C-1018 | 0.31, 0.38, 0.44, 0.5 |
| Structural A-36 | 0.31, 0.38, 0.44, 0.5 |
| Capacity (Tons) | 35 |
| Cylinder | Spring Return |
| Characteristics | Single-Acting |
| Hole Shape | Circle |
| Oil Capacity | 4.58 cu in |
| Cylinder Return Type | Single-Acting, Spring Return |
| Series | MSP |
| Package Quantity | 1 |
