RLP5209, RSL5000 Imperial or Metric Cassette, 2 9/16 in. / 65 mm Hexagon AF Size
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Torque Wrench Cassette |
| Max. Torque | 5,303 ft-lb |
| Hex Size | 2-9/16 in |
| Width | 1-3/4 in |
| Socket Shape | Hex |
| For Use With | Enerpac RSL Series Hydraulic Torque Wrenches |
| Nominal Torque @ 10,000 PSI (Nm) | 7,190 |
| Series | RLP |
| Weight | 7 lb |

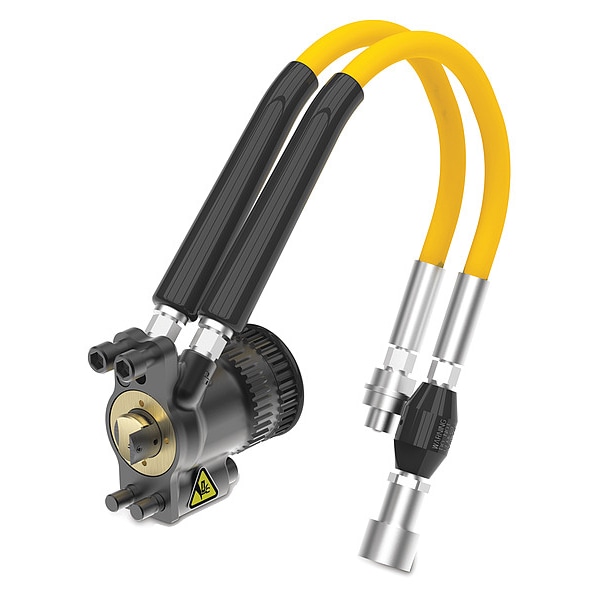

| Drive Unit Model Number | 55PP80 (Mfr. No. RSL5000) |
| Application | Torque |
| Nominal Torque @ 10,000 PSI (ft.-lb.) | 5,303 |
| Material | Steel |
| Nose Radius | 2.01 in |
| Torque Range | 530 to 5,303 ft-lb |
| Compatible Tool Series | Hydraulic Torque Wrench Drive |
| Tool Weight | 7 lb |
| Nominal Torque (N-m) @ 10,000 psi | 7,190 N-m |
| Minimum Hex Size (in) | 2-9/16 in |
| Product Type | Torque Wrench Cassette |
| Nominal Torque (ft-lb) @ 10,000 psi | 5,303 ft-lb |
| Maximum Hex Size (mm) | 65 mm |
| Tool Height | 6-15/16 in |
| Minimum Hex Size (mm) | 65 mm |
| Maximum Hex Size (in) | 2-9/16 in |
| Tool Width | 1-3/4 in |
| Compatible Manufacturer Drive Unit Number | RSL5000 |
| Tool Series | RLP |
| Max. Pressure | 10000 psi |
| Package Quantity | 1 |
