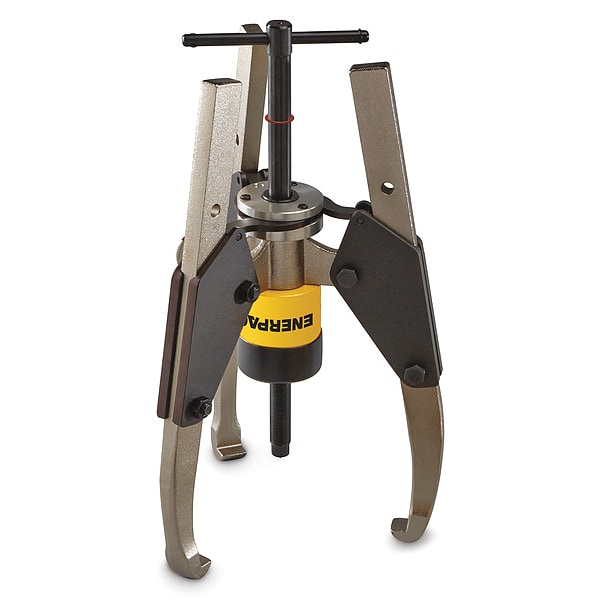

SGH14, 14 Ton, Hydraulic Sync Grip Puller
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Jaw Puller |
| Features | Self-Centering Closing System Allows All Jaws to Move Simultaneously Making It Easy for A Single Operator |
| Jaw Reach | 12-5/8 in |
| Capacity | 14 ton |
| For Use With | Bearings, Bushings, Wheels, Gears, Pulleys |
| Jaw Style | Hydraulic |
| Locking | Yes |
| Number of Jaws | 3 |
| Jaw Spread | 13-3/4 in |
| Reach (In.) | 12.6 |
| Type | Hydraulic |
| Max. Spread (In.) | 13.78 |
| Application | Pull |
| Stroke | 1 in |
| Maximum Operating Pressure | 10,000 psi |
| Jaw Width | 0.59 in |
| Series | SGH |
| Jaw Thickness | 0.98 in |
| Jaw Hole Spacing | 3.27 in |
| Jaw Height | 0.49 in |
| Min. Jaw Spread | 1 mm |
| Cylinder Nominal Capacity | 14 ton |
| Max. Jaw Spread | 13.78 in |
| Package Quantity | 1 |
