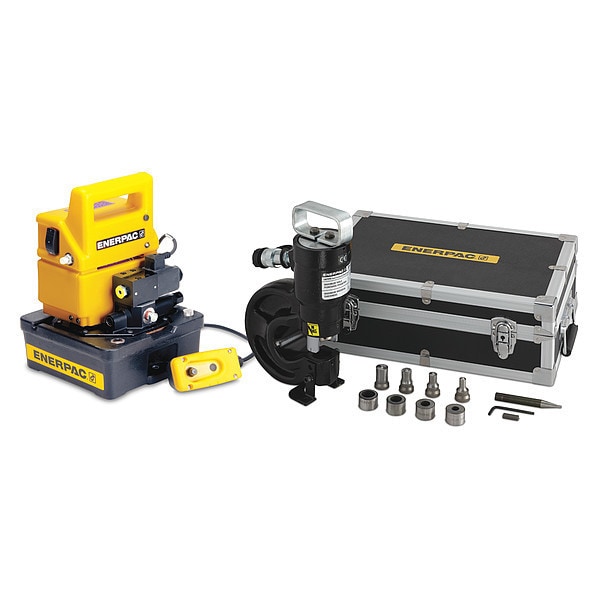

SP35SP, 35 Ton, Hydraulic Punch and Standard Die Set with Electric Pump 115 VAC
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Punch and Dump Pump |
| Hole Size (In.) | 0.31 to 0.81 in |
| Application | Punching |
| Mild A-7 | 0.5 |
| Boilerplate | 0.44 in, 1/2 in |
| Includes | 115 VAC Electric Hydraulic Pump, CR400 Coupler |
| Stainless 304 Hot Rolled | 0.31, 0.4, 0.44 |
| Hot Rolled C-1095 | 0.19, 0.25 |
| Standard Hole Size (In.) | 0.31 - 0.81 in |
| Capacity (Tons) | 35 |
| Working Pressure (PSI) | 10,000 psi |
| Structural A-36 | 0.38, 0.5 |
| Stainless 302 Annealed | 0.31, 0.4, 0.44 |
| Hot Rolled C-1050 | 0.31, 0.4, 0.44 |
| Cold Rolled C-1018 | 0.38, 0.5 |
| Struct CORTEN ASTM A242 | 0.38, 0.44 |
| Standard Bolt Size (In.) | 3/8, 1/2, 5/8, 3/4 |
| Stainless 316 Cold Rolled | 0.31, 0.4, 0.44 |
| Hot Rolled C-1095 Annealed | 0.31, 0.38 |
| Bolt Size (In.) | 3/8, 1/2, 5/8, 3/4 |
| Cylinder | Spring Return |
| Characteristics | Single-Acting |
| Oil Capacity | 4.58 cu in |
| Series | SP |
| Pump Power Source | Pump |
| Cylinder Return Type | Single-Acting, Spring Return |
| Width | 3.85 in |
| Hole Shape | Circle |
| Package Quantity | 1 |
