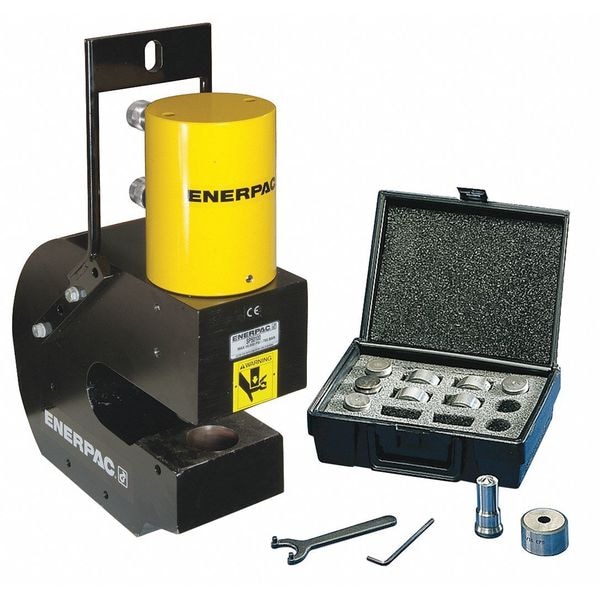

SP50100, 50 Ton, Punch and Die Set
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Punch Set |
| Hole Size (In.) | 0.53 to 1.03 in |
| Application | Punching |
| Hot Rolled C-1095 | 0.19, 0.22, 0.32 |
| Mild A-7 | 0.56 |
| Standard Bolt Size (In.) | 1/2, 5/8, 3/4, 7/8, 1 |
| Hot Rolled C-1095 Annealed | 0.31, 0.35, 0.4 |
| Stainless 304 Hot Rolled | 0.31, 0.35, 0.49, 0.51 |
| Includes | CR400 Coupler |
| Boilerplate | 0.53 in, 0.56 in |
| Structural A-36 | 0.53, 0.56 |
| Stainless 302 Annealed | 0.31, 0.35, 0.49, 0.51 |
| Stainless 316 Cold Rolled | 0.31, 0.35, 0.49, 0.51 |
| Cold Rolled C-1018 | 0.53, 0.56 |
| Bolt Size (In.) | 1/2, 5/8, 3/4, 7/8, 1 |
| Hot Rolled C-1050 | 0.31, 0.35, 0.49, 0.51 |
| Struct CORTEN ASTM A242 | 0.44, 0.5, 0.53 |
| Working Pressure (PSI) | 10,000 psi |
| Capacity (Tons) | 50 |
| Standard Hole Size (In.) | 0.53 - 1.03 in |
| Characteristics | Double-Acting |
| Cylinder | Hydraulic Return |
| Series | SP |
| Cylinder Return Type | Double-Acting, Hydraulic Return |
| Oil Capacity Advance | 17 cu in |
| Width | 6.73 in |
| Hole Shape | Circle |
| Oil Capacity Retract | 14 cu in |
| Package Quantity | 1 |
