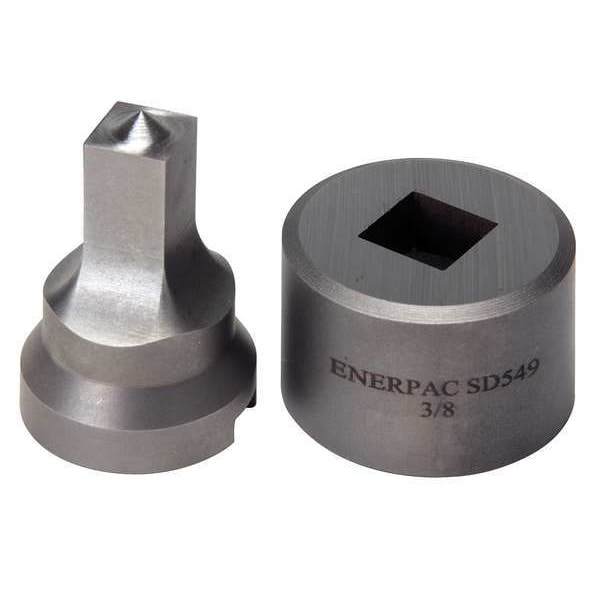

SPD549, Punch Die Set, Square Hole Shape
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Punch and Die Set |
| Stainless 302 Annealed | 0.31 |
| Struct CORTEN ASTM A242 | 0.31 |
| Characteristics | Square Hole |
| Standard Bolt Size (In.) | 5/16 |
| Structural A-36 | 0.31 |
| Hot Rolled C-1050 | 0.31 |
| Standard Hole Size (In.) | 0.38 |
| Stainless 316 Cold Rolled | 0.31 |
| Bolt Size (In.) | 5/16 |
| Cold Rolled C-1018 | 0.31 |
| Boilerplate | 0.38 in |
| Stainless 304 Hot Rolled | 0.31 |
| Mild A-7 | 0.38 |
| Hot Rolled C-1095 Annealed | 0.25 |
| Hot Rolled C-1095 | 0.19 |
| Hole Size (In.) | 0.38 in |
| Application | Punching |
| Cylinder | Spring Return |
| Includes | CR400 Female Coupler |
| Capacity (Tons) | 35 |
| Working Pressure (PSI) | 10,000 psi |
| Series | SPD |
| Hole Shape | Square |
| Compatible Part Number | SP35, SP35S, SP35SP, MSP351, MSP351PE, STP35H, STP35A |
| Width | 1-1/4 in |
| Package Quantity | 1 |
