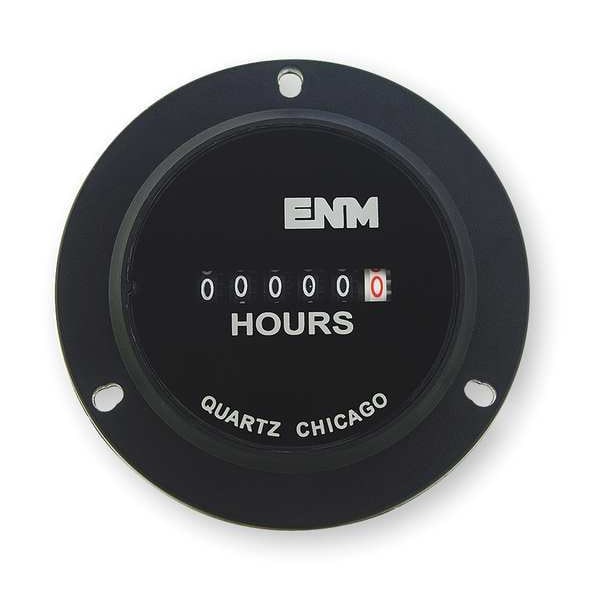

Medidor de horas de corriente alterna II, de 6 dígitos, 2.8 pulgadas, 3 agujeros.
| Item | Hour Meter |
|---|---|
| Display Type | Electromechanical |
| Reset Type | No Reset |
| Display Units | Hours, Tenths |
| Operating Voltage | 24V AC |
| Number of Digits | 6 |
| Bezel Face Shape | Round |
| Bezel Face Size | 2.80 in dia |
| Bezel Face Type | Flange Mount |
| Time Range | 0 to 99999.9 |
| Fits | 2.0 in dia Opening |
| Hz | 50/60 Hz |
| Mounting Method | 3-Screw |
| NEMA Rating | 12, 4X |
| Input Type | Electrical |
| Ambient Temp. Range | -22 to 149 deg F |
| Bezel To Back Length | 1-1/2 in |
| Temp. Range | -22 to 149 deg F |
| Elapsed Time To | 99,999.9 |
| Terminal Type | Spade |
| Material of Construction | ABS |
| Fits Panel Cut Out | 2.00 in dia |
| Standards | CE, CUL, RoHS, UL |
| Cutout Width | Not Applicable |
| Input Voltage - Minimum | 20.4 V AC |
| Operating Temperature - Maximum | 185 deg F |
| Includes Mounting Hardware | Included |
| Hour Unit Increment | Tenth |
| Overall Height | Not Applicable |
| Mount Securing Method | 3-Hole |
| Bezel Face Height | Not Applicable |
| Counter Display Type | Analog |
| Overall Depth | 1-1/4 in |
| Overall Width | Not Applicable |
| NEMA Enclosure Rating | 12, 4X |
| Operating Temperature - Minimum | -40 deg F |
| Cutout Height | Not Applicable |
| Overall Diameter | 1-5/8 in |
| Cutout Diameter | 2 in |
| Display Span - Maximum | 99,999.9 |
| Input Voltage - Maximum | 24 V AC |
| Bezel Face Width | Not Applicable |
| Bezel Face Diameter | 2-3/4 in |
| Cutout DIN Size | Not Applicable |
| Mounting Style | Panel |
| Package Quantity | 1 |
