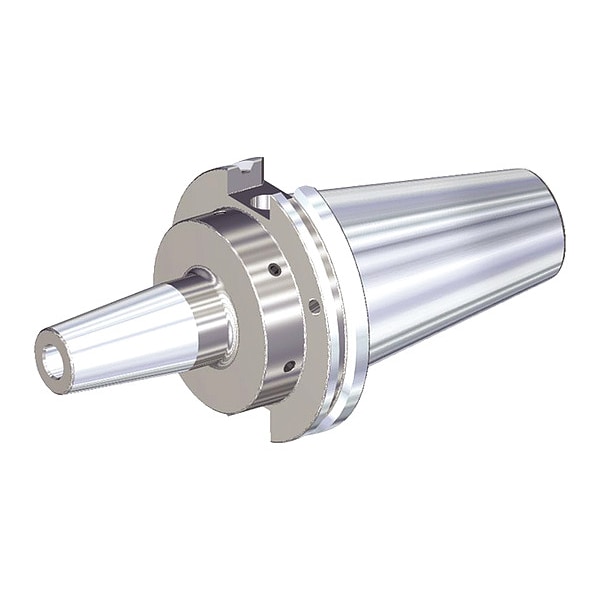

10MM SHRINK FIT GP - CVKV 40
| Series | HSK63A |
|---|---|
| Coolant Fed | Coolant Through |
| Item | Shrink Fit Tool Holder and Adapter |
| Hole Dia. | 10 mm |
| Shank Dia. | 24 mm |
| Nose Dia. | 24 mm |
| Projection | 88.9 mm |
| For Use With | Carbide and HSS Tools |
| List Number | CVKV40BHPVTT10M350 |
| Taper Size | CVKV40 |
| Features | Axial Adjustment - End, Balanceable - Fine Tune with Optional M6 Set Screws |
| Max. Speed | 20,000 rpm |
| Overall Length | 157.15 mm |
| Compatible with Product Type | Carbide and HSS Cutting Tools |
| Balanced to RPM | G 2.5 @ 20,000 rpm |
| Tool Depth | 31 mm |
| Standards | ANSI, DIN 69893, ISO |
| Measurement System | Metric |
| Package Quantity | 1 |
