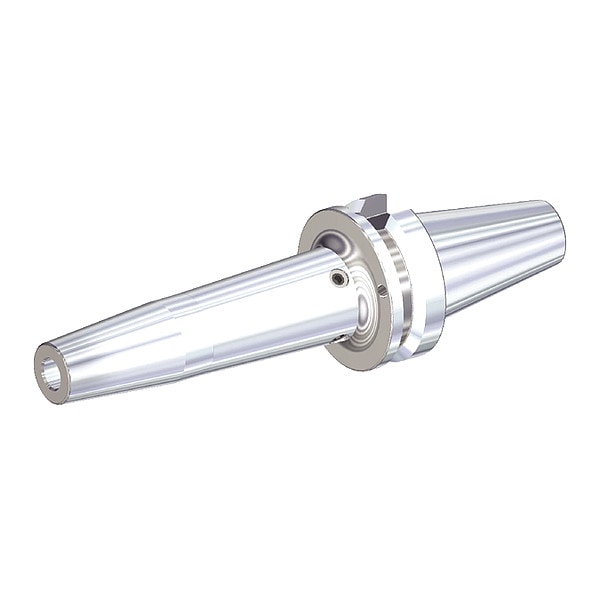

18MM SHRINK FIT - HPV GENERAL PURPOSE -
| Series | BT30 |
|---|---|
| Hole Dia. | 18 mm |
| Shank Dia. | 33 mm |
| Item | Shrink Fit Tool Holder and Adapter |
| Coolant Fed | Coolant Through |
| Taper Size | BT40 |
| For Use With | Carbide and HSS Tools |
| List Number | BT40BHPVTT18160M |
| Projection | 160 mm |
| Nose Dia. | 33 mm |
| Features | Axial Adjustment - End, Balanceable -Fine Tune with Optional M6 Set Screws |
| Overall Length | 225.4 mm |
| Max. Speed | 15,000 rpm |
| Balanced to RPM | G 6.3 @ 15,000 rpm |
| Tool Depth | 39 mm |
| Compatible with Product Type | Carbide and HSS Cutting Tools |
| Measurement System | Metric |
| Standards | ANSI, ISO, JIS B 6339 |
| Package Quantity | 1 |
