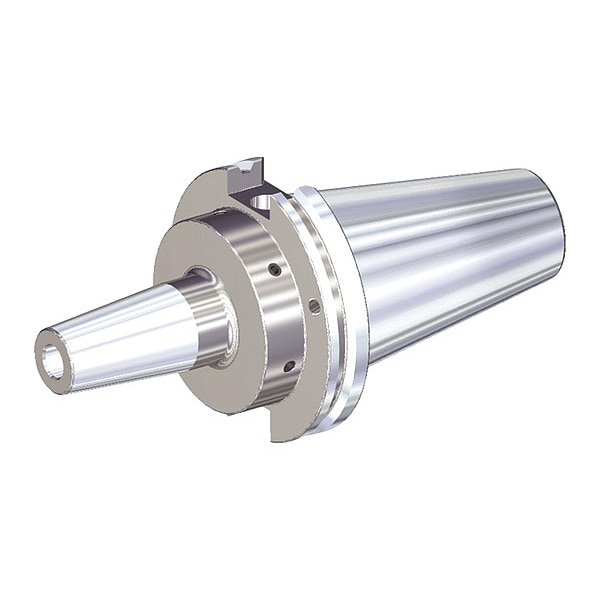

3/4 SHRINK FIT GP - CVKV 40
| Series | HSK100A |
|---|---|
| Item | Shrink Fit Tool Holder and Adapter |
| Coolant Fed | Coolant Through |
| Hole Dia. | 19.05 mm |
| Shank Dia. | 33 mm |
| Projection | 101.6 mm |
| Taper Size | CVKV40 |
| List Number | CVKV40BHPVTT075400 |
| For Use With | Carbide and HSS Tools |
| Nose Dia. | 33 mm |
| Max. Speed | 20,000 rpm |
| Overall Length | 169.85 mm |
| Features | Axial Adjustment - End, Balanceable - Fine Tune with Optional M6 Set Screws |
| Compatible with Product Type | Carbide and HSS Cutting Tools |
| Balanced to RPM | G 2.5 @ 20,000 rpm |
| Tool Depth | 41 mm |
| Standards | DIN 69893, ISO, ANSI |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
