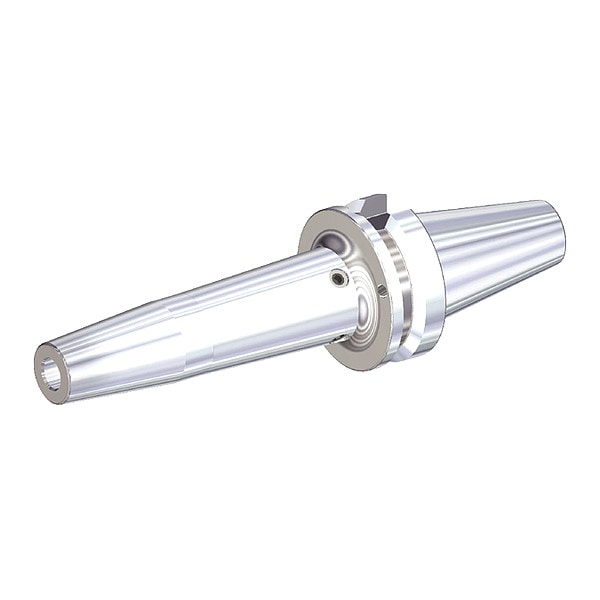

3/4 SHRINK FIT - HPV GENERAL PURPOSE - B
| Series | BT40 |
|---|---|
| Item | Shrink Fit Tool Holder and Adapter |
| Hole Dia. | 19.05 mm |
| Coolant Fed | Coolant Through |
| Shank Dia. | 33 mm |
| For Use With | Carbide and HSS Tools |
| Taper Size | BT50 |
| List Number | BT50BHPVTT075394 |
| Projection | 100 mm |
| Nose Dia. | 33 mm |
| Features | Axial Adjustment - End, Balanceable -Fine Tune with Optional M6 Set Screws |
| Max. Speed | 15,000 rpm |
| Overall Length | 201.8 mm |
| Balanced to RPM | G 6.3 @ 15,000 rpm |
| Tool Depth | 41 mm |
| Compatible with Product Type | Carbide and HSS Cutting Tools |
| Measurement System | Fractional Inch |
| Standards | ANSI, ISO, JIS B 6339 |
| Package Quantity | 1 |
