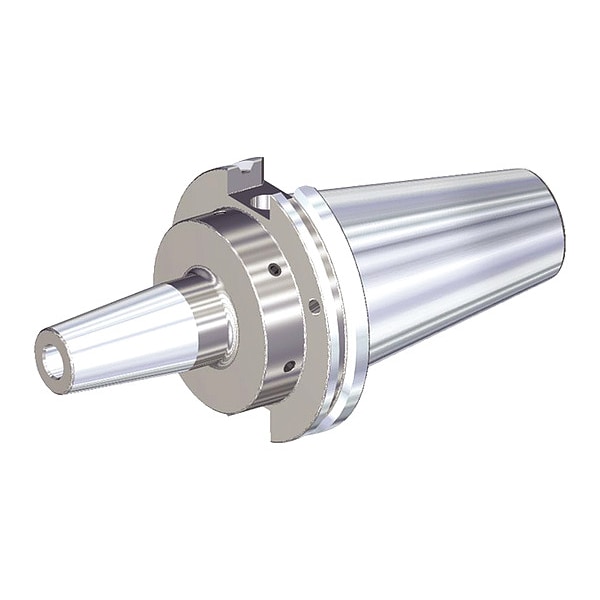

6MM SHRINK FIT GP - CVKV 50
| Series | HSK63A |
|---|---|
| Coolant Fed | Coolant Through |
| Shank Dia. | 21 mm |
| Item | Shrink Fit Tool Holder and Adapter |
| Hole Dia. | 21 mm |
| Nose Dia. | 21 mm |
| Projection | 88.9 mm |
| List Number | CVKV50BHPVTT06M350 |
| Taper Size | CVKV50 |
| For Use With | Carbide and HSS Tools |
| Overall Length | 190.5 mm |
| Features | Axial Adjustment: End, Balanceable, Fine Tune with Optional M6 Set Screws |
| Max. Speed | 15,000 rpm |
| Compatible with Product Type | Carbide and HSS Cutting Tools |
| Tool Depth | 26 mm |
| Balanced to RPM | G 2.5 @ 15,000 rpm |
| Standards | ANSI, DIN 69893, ISO |
| Measurement System | Metric |
| Package Quantity | 1 |
