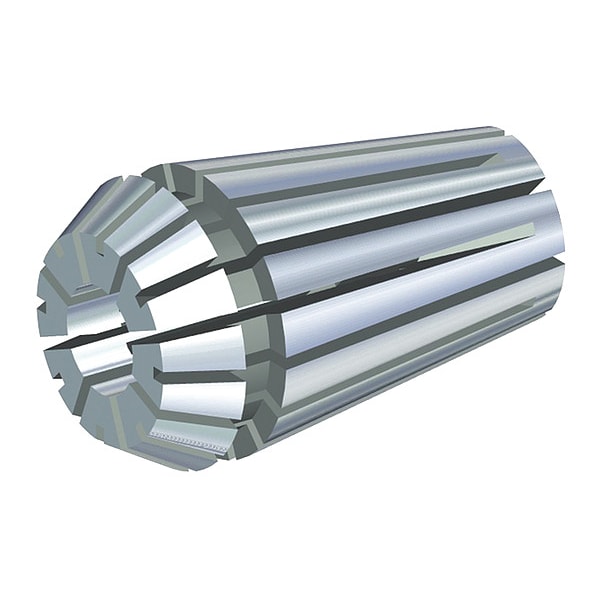

COLLET ERTC32 M4-M20 5.5
| Item | Collets |
|---|---|
| Collet Series | ER32 |
| Overall Length | 40 mm |
| Coolant Fed | Non-Coolant Through |
| For Use With | Can be Used in All Standard ER Collet Chucks |
| Max. Body Dia. | 33 mm |
| Number of Slots | 8 |
| Collet Type | Tap |
| Face Shape | Round |
| Features | Square in Back of Collet Acts as A Drive for the Tap Square |
| Measurement System | Metric |
| Taper Angle | 16 deg |
| Head Dia. | 33 mm |
| Max. Bore Dia. | 32.8 mm |
| For Shank Type | Cylindrical |
| Standards | ISO, ANSI, DIN 6499 |
| Clamping Hole Length | 18 mm |
| Max. Size | Not Applicable |
| Color | Silver |
| Min. Size | Not Applicable |
| Size Increments | 0.13 mm |
| Coolant Hole Shape | Not Applicable |
| Compatible with Product Type | ER Standard Collet Chucks |
| Product Type | Tap Collet |
| Compatible Tap Holder | ER Standard Collet Chucks |
| Series | ER32 |
| Package Quantity | 1 |
