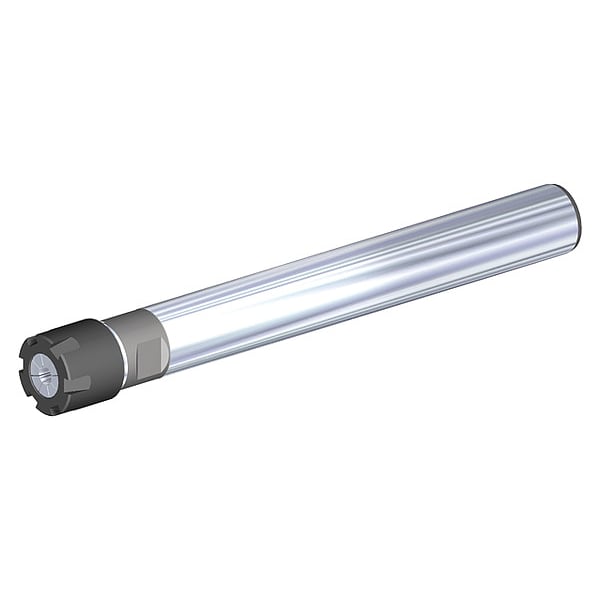

ER 16 COLLET CHUCK 3/4 STRAIGH SHANK
| Item | Collet Chuck |
|---|---|
| Shank Type | Straight |
| Dimension Type | Fractional Inch |
| Overall Length | 7 in |
| Taper Size | SS075 |
| Shank Dia. | 3/4 in |
| Collet Series | ER16 |
| Min. Collet Capacity | 0.02 in |
| Max. Collet Capacity | 0.41 in |
| Projection | 12 in |
| Material | High Speed Steel |
| Nut Dia. | 0.8661 in |
| Nose Dia. | 22 mm |
| Bore Depth | 1.299 in |
| For Use With | All Face Mills |
| Coolant Fed | Coolant Through |
| Features | Grip 2:1 |
| ANSI Code | SS075ER16700 |
| Standards | DIN 6499 |
| Shank Type - Machining | Straight |
| Coolant Hole Shape | Round |
| Material - Machining | High Speed Steel |
| Application | Drilling |
| For Shank Type | Cylindrical |
| Number of Coolant Holes | 2 |
| Head Dia. | 0.88 in |
| Cutting Direction | Neutral |
| Compatible Collet Series | ER16 |
| Compatible Collet Wrench | All Face Mills |
| Nut Diameter | 0.8661 in |
| Shank Diameter | 3/4 in |
| Package Quantity | 1 |
