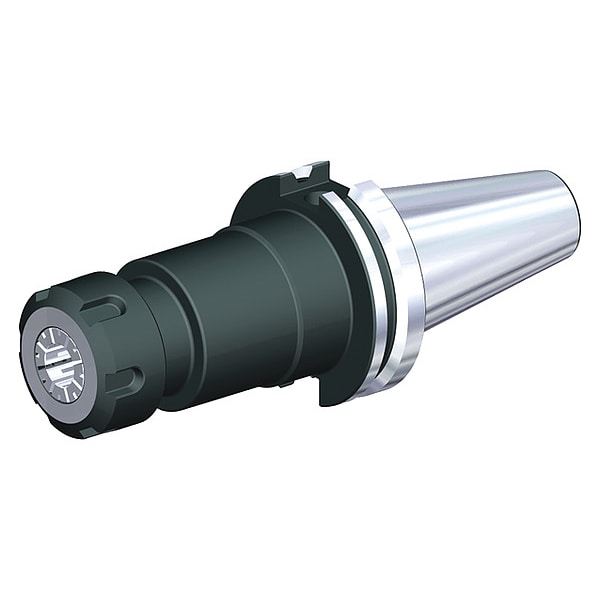

ER 20 COLLET CHUCK - CVKV 50
| Item | Collet Chuck |
|---|---|
| Dimension Type | Fractional Inch |
| Shank Type | Cylindrical |
| Overall Length | 165.0938 mm |
| Taper Size | CVKV50 |
| Collet Series | ER20 |
| Shank Dia. | 10 mm |
| Min. Collet Capacity | 0.02 in |
| Max. Collet Capacity | 1/2 in |
| Projection | 2-1/2 in |
| Bore Depth | 1.417 in |
| Nut Dia. | 1.378 in |
| Nose Dia. | 24 mm |
| Coolant Fed | Coolant Through |
| ANSI Code | CVKV50ER20250 |
| Features | Grip 2:1 |
| Standards | DIN 6499 |
| Compatible with Product Type | Cutting Tools |
| For Shank Type | Cylindrical |
| Number of Coolant Holes | 2 |
| Application | Drilling |
| Shank Thread Size | 5/8"-11 |
| Shank Type - Machining | Cylindrical |
| Hole Dia. | 10 mm |
| Tool Depth | 42 mm |
| Cutting Direction | Neutral |
| Balanced to RPM | 25,000 RPM |
| Compatible Collet Series | ER20 |
| Nut Diameter | 1.378 in |
| Shank Diameter | 10 mm |
| Package Quantity | 1 |
