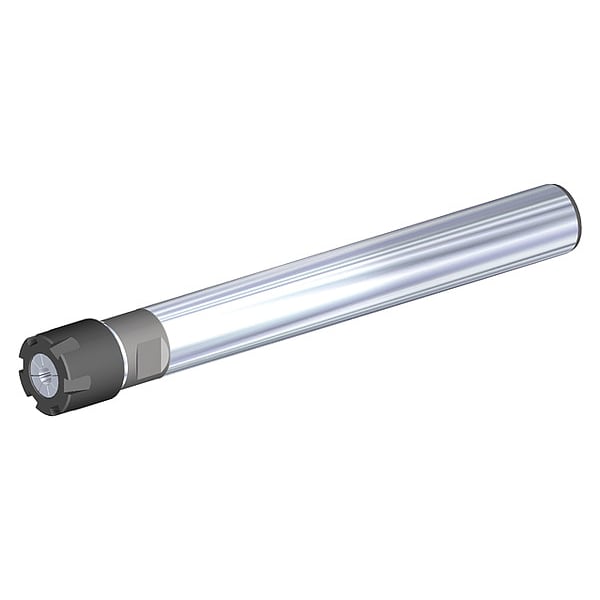

ER 25 COLLECT CHUCK 1 STRAIGHT SHANK
| Item | Collet Chuck |
|---|---|
| Shank Type | Straight |
| Dimension Type | Fractional Inch |
| Overall Length | 7-1/2 in |
| Taper Size | SS100 |
| Shank Dia. | 1 in |
| Collet Series | ER25 |
| Min. Collet Capacity | 0.04 in |
| Max. Collet Capacity | 0.63 in |
| Projection | 12 in |
| For Use With | All Face Mills |
| Bore Depth | 1.575 in |
| Nut Dia. | 1.654 in |
| Material | High Speed Steel |
| Nose Dia. | 42.01 mm |
| Coolant Fed | Coolant Through |
| Standards | DIN 6499 |
| Features | Grip 2:1 |
| ANSI Code | SS100ER25750 |
| Shank Type - Machining | Straight |
| Coolant Hole Shape | Round |
| Material - Machining | High Speed Steel |
| Application | Drilling |
| For Shank Type | Cylindrical |
| Number of Coolant Holes | 2 |
| Head Dia. | 1.19 in |
| Cutting Direction | Neutral |
| Compatible Collet Wrench | All Face Mills |
| Shank Diameter | 1 in |
| Compatible Collet Series | ER25 |
| Nut Diameter | 1.654 in |
| Package Quantity | 1 |
