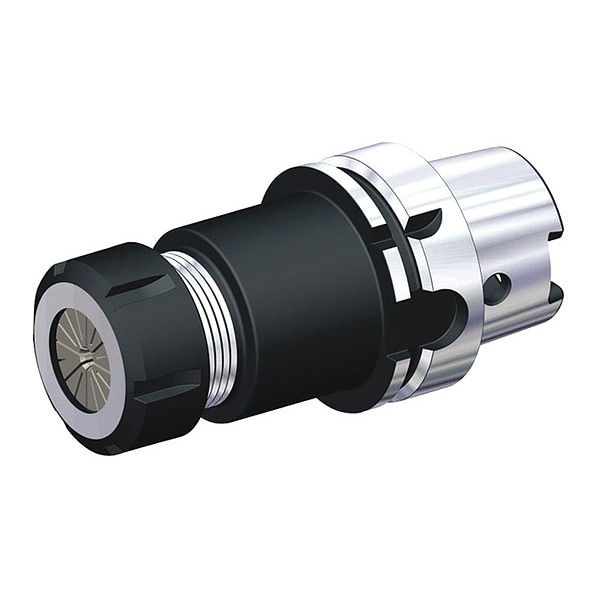

ER COLLET CHUCK HSK100A 25ER
| Item | Collet Chuck |
|---|---|
| Dimension Type | Metric |
| Shank Type | Cylindrical |
| Taper Size | HSK100 |
| Overall Length | 149.9062 mm |
| Collet Series | ER25 |
| Shank Dia. | 3.8 in |
| Min. Collet Capacity | 0.04 in |
| Max. Collet Capacity | 0.63 in |
| Projection | 100 mm |
| Nose Dia. | 42 mm |
| Bore Depth | 40 mm |
| Nut Dia. | 42 mm |
| Material | High Speed Steel |
| For Use With | All Face Mills |
| Coolant Fed | Coolant Through |
| Features | Grip 2:1 |
| Standards | DIN 6499 |
| ANSI Code | HSK100AER25100M |
| Material - Machining | High Speed Steel |
| Shank Type - Machining | Cylindrical |
| Coolant Hole Shape | Round |
| For Shank Type | Cylindrical |
| Number of Coolant Holes | 2 |
| Application | Drilling |
| Head Dia. | 1.88 in |
| Cutting Direction | Neutral |
| Compatible Collet Wrench | All Face Mills |
| Nut Diameter | 42 mm |
| Shank Diameter | 3.8 in |
| Compatible Collet Series | ER25 |
| Package Quantity | 1 |
