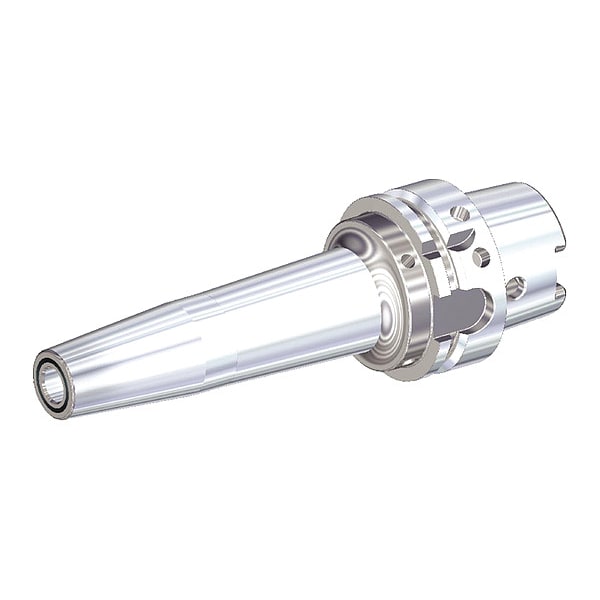

HSK100 SHRINK FIT ADAPTER HIGH PERFORMAN
| Series | HSK40A |
|---|---|
| Coolant Fed | Coolant Through |
| Hole Dia. | 1/2 in |
| Item | Shrink Fit Tool Holder and Adapter |
| Shank Dia. | 0.9449 in |
| Nose Dia. | 0.9449 in |
| List Number | HSK100AHPVTTHT050374 |
| Projection | 3.74 in |
| Taper Size | HSK100A |
| For Use With | Carbide Only |
| Max. Speed | 25,000 rpm |
| Overall Length | 144.9 mm |
| Features | Axial Adjustment - End, Balanceable - Fine Tune with Optional M6 Set Screws |
| Compatible with Product Type | Carbide and HSS Cutting Tools |
| Balanced to RPM | G 2.5 @ 25,000 rpm |
| Tool Depth | 1.417 in |
| Measurement System | Fractional Inch |
| Standards | DIN 69893, ISO, ANSI |
| Package Quantity | 1 |
