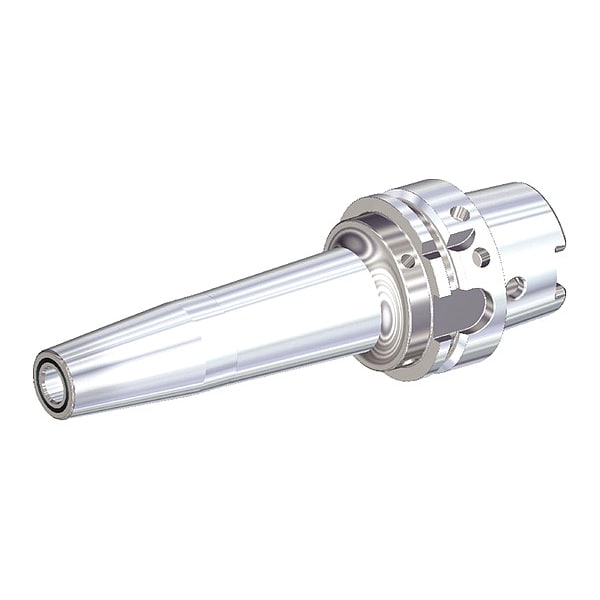

HSK100 SHRINK FIT ADAPTER HIGH PERFORMAN
| Series | HSK63A |
|---|---|
| Item | Shrink Fit Tool Holder and Adapter |
| Shank Dia. | 1.299 in |
| Coolant Fed | Coolant Through |
| Hole Dia. | 3/4 in |
| For Use With | Carbide Only |
| Taper Size | HSK100A |
| Nose Dia. | 1.299 in |
| Projection | 4.13 in |
| List Number | HSK100AHPVTTHT075413 |
| Overall Length | 154.9 mm |
| Max. Speed | 25,000 rpm |
| Features | Axial Adjustment - End, Balanceable - Fine Tune with Optional M6 Set Screws |
| Balanced to RPM | G 2.5 @ 25,000 rpm |
| Compatible with Product Type | Carbide and HSS Cutting Tools |
| Tool Depth | 1.614 in |
| Standards | ANSI, DIN 69893, ISO |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
