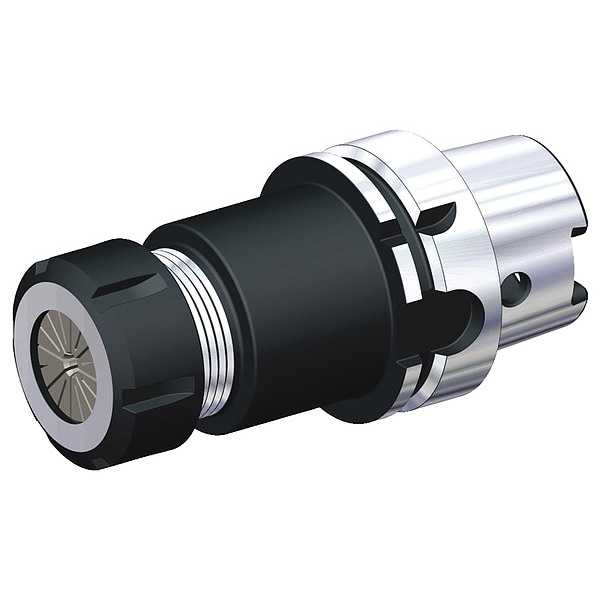

HSK125A COLLET CHUCK ER40 L120MM
| Item | Collet Chuck |
|---|---|
| Dimension Type | Metric |
| Shank Type | Cylindrical |
| Overall Length | 182.9062 mm |
| Taper Size | HSK125 |
| Shank Dia. | 18 mm |
| Collet Series | ER40 |
| Projection | 120 mm |
| Bore Depth | 52 mm |
| Nose Dia. | 33 mm |
| Nut Dia. | 63 mm |
| Coolant Fed | Coolant Through |
| Standards | DIN 6499 |
| Features | Grip 2:1 |
| ANSI Code | HSK125AER40120M |
| Compatible with Product Type | Cutting Tools |
| For Shank Type | Cylindrical |
| Application | Drilling |
| Shank Type - Machining | Cylindrical |
| Number of Coolant Holes | 2 |
| Hole Dia. | 18 mm |
| Balanced to RPM | 25,000 RPM |
| Cutting Direction | Neutral |
| Tool Depth | 50 mm |
| Compatible Collet Series | ER40 |
| Nut Diameter | 63 mm |
| Shank Diameter | 18 mm |
| Package Quantity | 1 |
