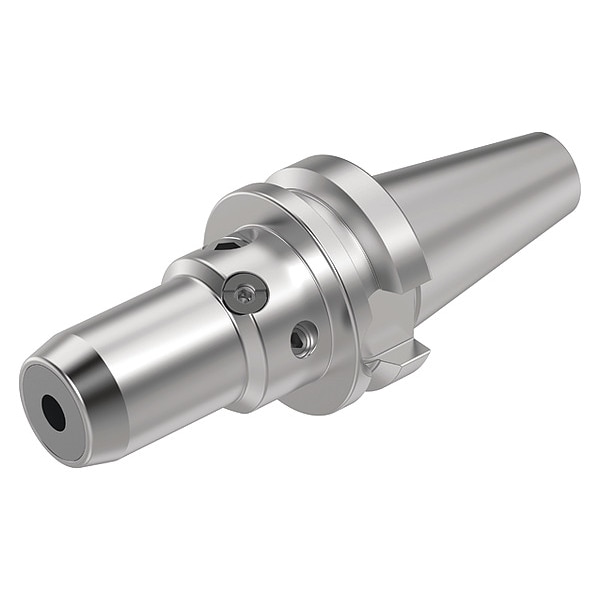

HYDRAULIC EXPANSION CHUCK BT40 20 BTB
| Series | ERK |
|---|---|
| Bore Dia. | 44.45 mm |
| Item | Hydraulic Chuck |
| Taper | BT40 |
| ANSI Number | BT40BHC20095M |
| Nose Dia. | 41.54 mm |
| Taper Size | BT40 |
| Balanced to RPM | G 2.5@25000 rpm |
| Overall Length | 160.4 mm |
| Shank Dia. | 20 mm |
| Tool Depth | 41 mm |
| Standards | JIS B 6339 |
| Coolant Fed | Coolant Through |
| Hole Dia. | 20 mm |
| Projection | 95 mm |
| Shank Type - Machining | Cylindrical |
| Style | High Performance Line |
| Mounting Length | 41 mm |
| Features | Side Axial Adjustment |
| For Use With | BT40 Shank Tools |
| Package Quantity | 1 |
