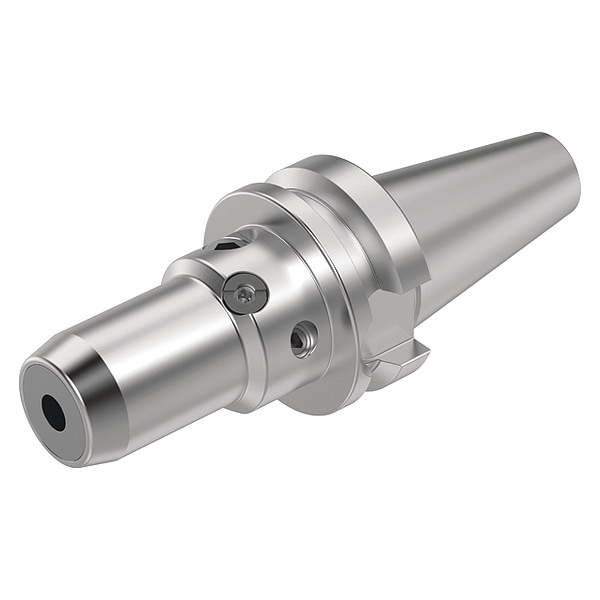

HYDRAULIC EXPANSION CHUCK BT40 25 BTB
| Bore Dia. | 44.45 mm |
|---|---|
| Item | Hydraulic Chuck |
| Taper | BT40 |
| Series | Cat50 ShrinkFit |
| ANSI Number | BT40BHC25115M |
| Nose Dia. | 49.9 mm |
| Standards | JIS B 6339 |
| Coolant Fed | Coolant Through |
| Projection | 115 mm |
| Overall Length | 180.4 mm |
| Hole Dia. | 25 mm |
| Balanced to RPM | G 2.5@25000 rpm |
| Tool Depth | 46 mm |
| Shank Dia. | 25 mm |
| Shank Type - Machining | Cylindrical |
| Taper Size | BT40 |
| Features | Side Axial Adjustment |
| Style | High Performance Line |
| For Use With | BT40 Shank Tools |
| Mounting Length | 46 mm |
| Package Quantity | 1 |
