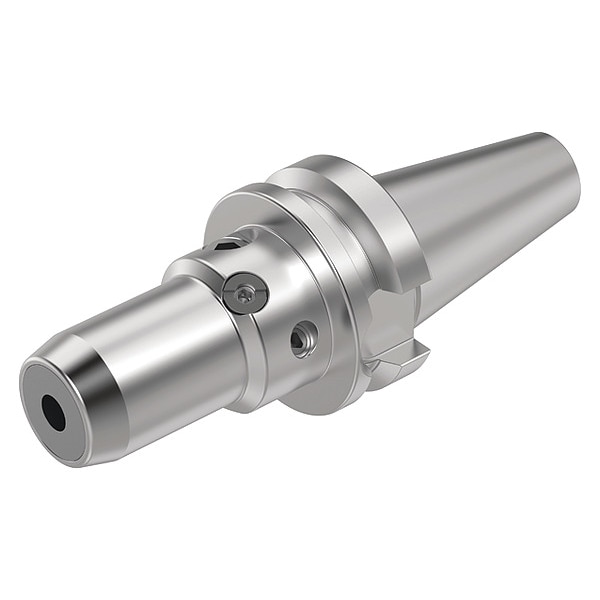

HYDRAULIC EXPANSION CHUCK BT50 32 BTB
| Item | Hydraulic Chuck |
|---|---|
| Series | ERK |
| Bore Dia. | 69.85 mm |
| Taper | BT50 |
| ANSI Number | BT50BHC32120M |
| Nose Dia. | 59.9 mm |
| Taper Size | BT50 |
| Balanced to RPM | G 6.3@15000 rpm |
| Coolant Fed | Coolant Through |
| Projection | 120 mm |
| Hole Dia. | 32 mm |
| Shank Type - Machining | Cylindrical |
| Tool Depth | 50 mm |
| Standards | JIS B 6339 |
| Shank Dia. | 32 mm |
| Overall Length | 221.8 mm |
| Style | High Performance Line |
| Features | Side Axial Adjustment |
| Mounting Length | 50 mm |
| For Use With | BT50 Shank Tools |
| Package Quantity | 1 |
