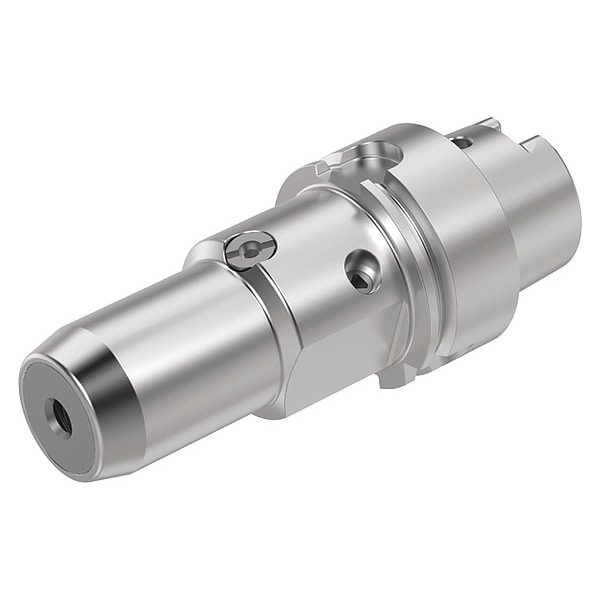

HYDRAULIC EXPANSION CHUCK HSK100A 18
| Item | Hydraulic Chuck |
|---|---|
| Bore Dia. | 100 mm |
| Series | ERK |
| Taper | HSK100A |
| Nose Dia. | 39.6 mm |
| ANSI Number | HSK100AHC18100M |
| Overall Length | 149.9 mm |
| Projection | 100 mm |
| Tool Depth | 39 mm |
| Balanced to RPM | G 2.5@25000 rpm |
| Standards | DIN 69893 |
| Shank Type - Machining | Cylindrical |
| Coolant Fed | Coolant Through |
| Shank Dia. | 18 mm |
| Hole Dia. | 18 mm |
| Taper Size | HSK100 |
| For Use With | HSK100 Shank Tools |
| Mounting Length | 39 mm |
| Features | Side Axial Adjustment |
| Style | Standard HP Line |
| Package Quantity | 1 |
