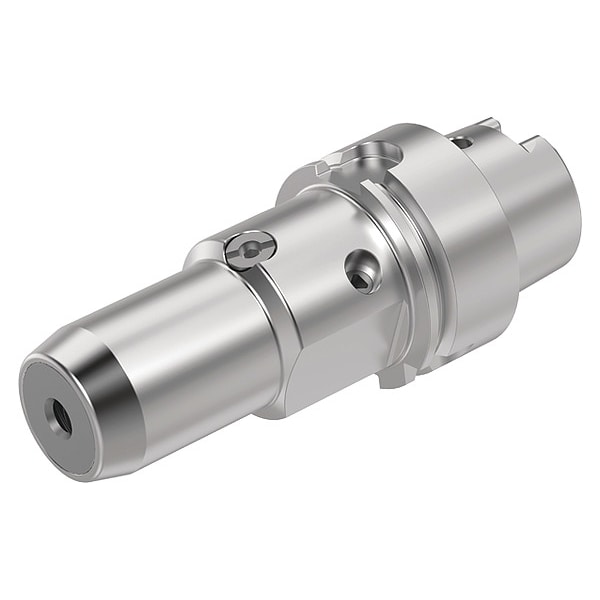

HYDRAULIC EXPANSION CHUCK HSK100A 25
| Taper | HSK100A |
|---|---|
| Item | Hydraulic Chuck |
| Series | Cat40 ShrinkFit |
| Bore Dia. | 100 mm |
| Nose Dia. | 49.75 mm |
| ANSI Number | HSK100AHC25115M |
| Overall Length | 164.9 mm |
| Tool Depth | 47 mm |
| Projection | 115 mm |
| Coolant Fed | Coolant Through |
| Shank Dia. | 25 mm |
| Shank Type - Machining | Cylindrical |
| Standards | DIN 69893 |
| Hole Dia. | 25 mm |
| Taper Size | HSK100 |
| Balanced to RPM | G 2.5@25000 rpm |
| Features | Side Axial Adjustment |
| For Use With | HSK100 Shank Tools |
| Style | Standard HP Line |
| Mounting Length | 47 mm |
| Package Quantity | 1 |
