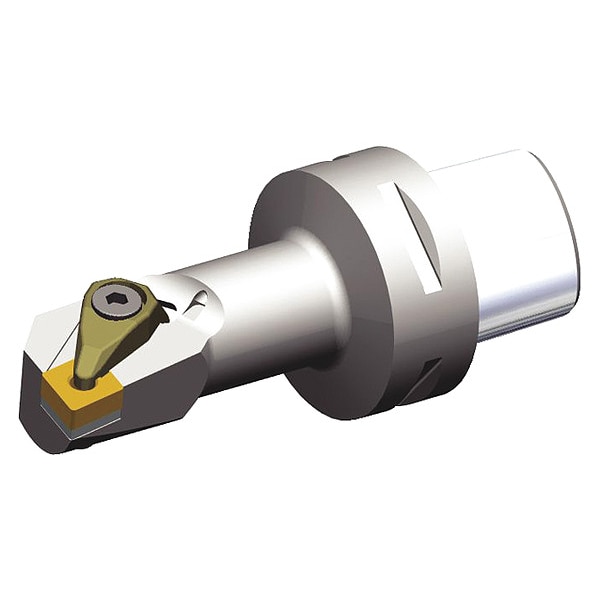

Indexable Cutting Head Unit, PSC63S25HDCLNR12, 138.00mm L, 80 Degrees Diamond Insert Shape
| Item | Indexable Cutting Head Unit |
|---|---|
| Overall Length | 138 mm |
| Insert Shape | 80 Degrees Diamond |
| ANSI Code | PSC63S25HDCLNR12 |
| Cutting Direction | Right Hand |
| Shank Dia. | 63 mm |
| Insert Size | 120408 (432) |
| Rake | -13.5 Degrees Radial, -5 Degrees Axial |
| Insert Style | CN |
| Cutting Application | Boring |
| Approach Angle | 95 deg |
| Insert Cutting Edge Length | 12.9 mm |
| ISO Number | PSC63S25HDCLNR12 |
| Standards | ISO 26623 |
| Min. Bore Dia. | 32 mm |
| Insert Holding Type | Clamp |
| Insert Clearance Angle | 0 deg |
| Toolholder Style | DCLN |
| Compatible Hardware | Kenclamp |
| Center to Cutting Tip | 17 mm |
| Side Cutting Edge Angle | -5 deg |
| Coolant Fed | Coolant Through |
| Max. Bore Depth | 72 mm |
| Connection Size | PSC63 |
| Package Quantity | 1 |
