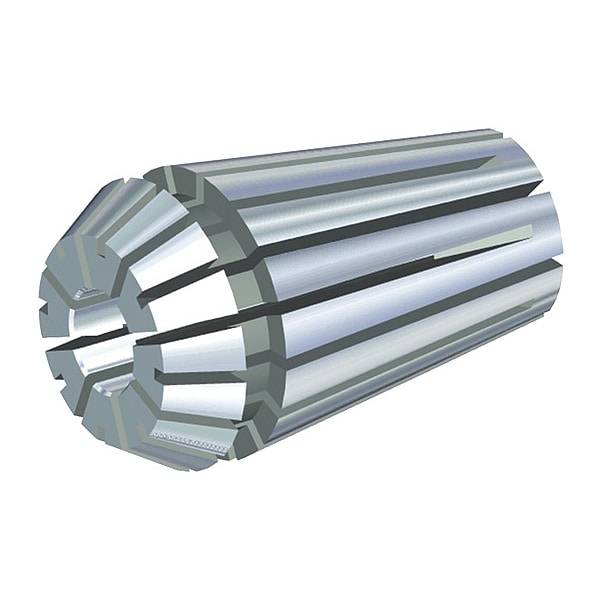

Machine Clamp Standard Pneumatic Clamp
| Item | Collets |
|---|---|
| Collet Series | ER16 |
| Range | 0.0625"-0.0425" |
| Overall Length | 1.083 in |
| Application | Assembly, Welding, Light Machining |
| Includes | (4) Mounting Bolts, Washers |
| Coolant Fed | Non-Coolant Through |
| Max. Bore Dia. | 0.6693 in |
| Standards | ISO, ANSI, DIN 6499 Class 2 |
| Clamping Hole Length | 0.689 in |
| Features | Provides Approximately 2:1 Grip Advantage, Wide Clamping Range |
| Number of Slots | 8 |
| Taper Angle | 16 deg |
| Face Shape | Round |
| Collet Type | Standard |
| For Shank Type | Cylindrical |
| Measurement System | Inch |
| Max. Body Dia. | 0.669 in |
| Head Dia. | 0.669 in |
| Min. Size | Not Applicable |
| For Use With | Pneumatic Swing Clamps |
| Compatible with Product Type | ER Collet Chucks |
| Max. Size | Not Applicable |
| Coolant Hole Shape | Not Applicable |
| Size Increments | 0.04 in |
| Color | Silver |
| Bore Shape | Round |
| Compatible Collet Chuck | ER Collet Chucks |
| Package Quantity | 1 |
