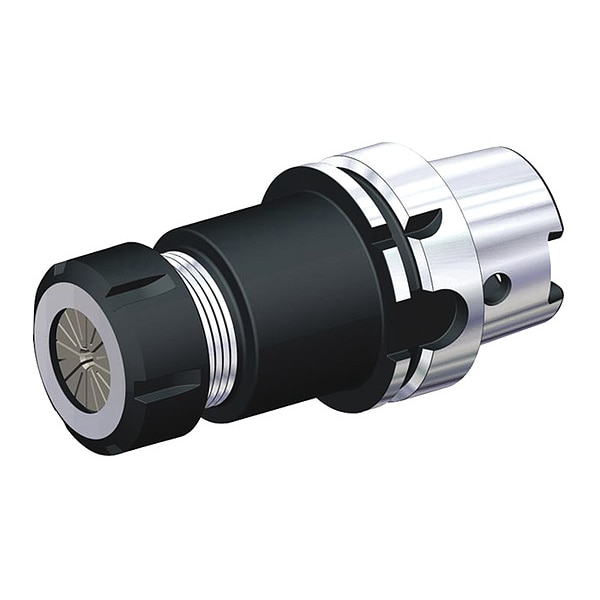

Milling Cutter Arbor, 1.1900", HSS
| Item | Collet Chuck |
|---|---|
| Dimension Type | Metric |
| Shank Type | Cylindrical |
| Taper Size | HSK63 |
| Overall Length | 151.9062 mm |
| Shank Dia. | 2.2 in |
| Collet Series | ER40 |
| Min. Collet Capacity | 0.12 in |
| Max. Collet Capacity | 1 in |
| Projection | 120 mm |
| Material | High Speed Steel |
| Nose Dia. | 63 mm |
| For Use With | All Face Mills |
| Nut Dia. | 63 mm |
| Bore Depth | 54 mm |
| Coolant Fed | Coolant Through |
| ANSI Code | HSK63AER40120M |
| Standards | DIN 6499 |
| Features | Grip 2:1 |
| Coolant Hole Shape | Round |
| Material - Machining | High Speed Steel |
| Shank Type - Machining | Cylindrical |
| Application | Drilling |
| For Shank Type | Cylindrical |
| Number of Coolant Holes | 2 |
| Head Dia. | 1.19 in |
| Cutting Direction | Neutral |
| Nut Diameter | 63 mm |
| Compatible Collet Series | ER40 |
| Shank Diameter | 2.2 in |
| Compatible Collet Wrench | All Face Mills |
| Package Quantity | 1 |
