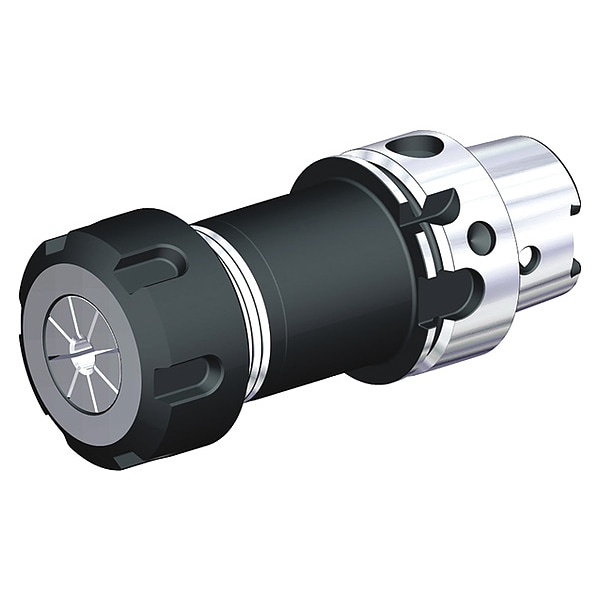

Retention Knob, BT40, M16
| Item | Collet Chuck |
|---|---|
| Dimension Type | Fractional Inch |
| Shank Type | Cylindrical |
| Taper Size | HSK40 |
| Overall Length | 60 mm |
| Collet Series | ER32 |
| Shank Dia. | 1.5748 in |
| Min. Collet Capacity | 0.08 in |
| Max. Collet Capacity | 0.81 in |
| Projection | 90 mm |
| Nose Dia. | 50 mm |
| Bore Depth | 46 mm |
| Nut Dia. | 50 mm |
| Coolant Fed | Coolant Through |
| Standards | DIN 6499 |
| ANSI Code | HSK40AER32090M |
| Features | Grip 2:1 |
| Shank Type - Machining | Cylindrical |
| For Shank Type | Cylindrical |
| Number of Coolant Holes | 2 |
| Application | Drilling |
| Cutting Direction | Neutral |
| Compatible Collet Series | ER32 |
| Shank Diameter | 1.5748 in |
| Nut Diameter | 50 mm |
| Package Quantity | 1 |
