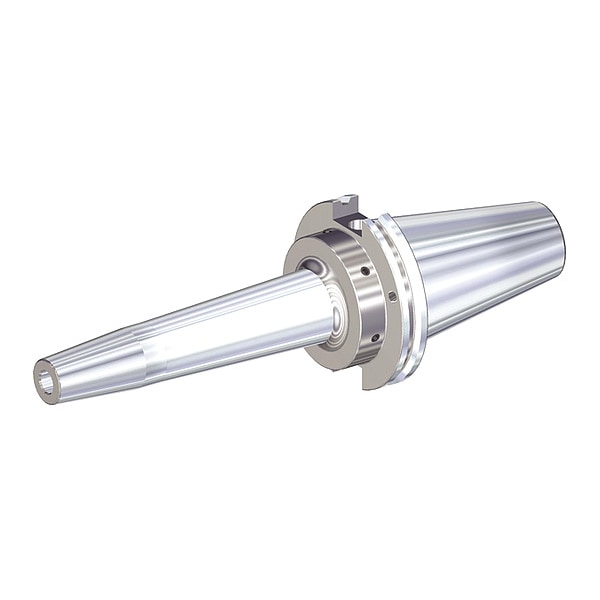

Shrink Fit Tool Holder, U3, BTKV40
| Item | Shrink Fit Tool Holder and Adapter |
|---|---|
| Taper Size | CV40 |
| Hole Dia. | 9.53 mm |
| Projection | 152.4 mm |
| Coolant Fed | Coolant Through |
| Shank Dia. | 24 mm |
| Overall Length | 220.65 mm |
| Balanced to RPM | G 6.3@15000 rpm |
| Nose Dia. | 24 mm |
| For Use With | Carbide and HSS Tools |
| List Number | CV40BHPVTT038600 |
| Max. Speed | 15,000 rpm |
| Features | Balanceable, End Axial Adjustment |
| Tool Depth | 31 mm |
| Compatible with Product Type | Cutting Tools |
| Series | BTKV40 |
| Measurement System | Fractional Inch |
| Standards | ANSI, ISO |
| Package Quantity | 1 |
