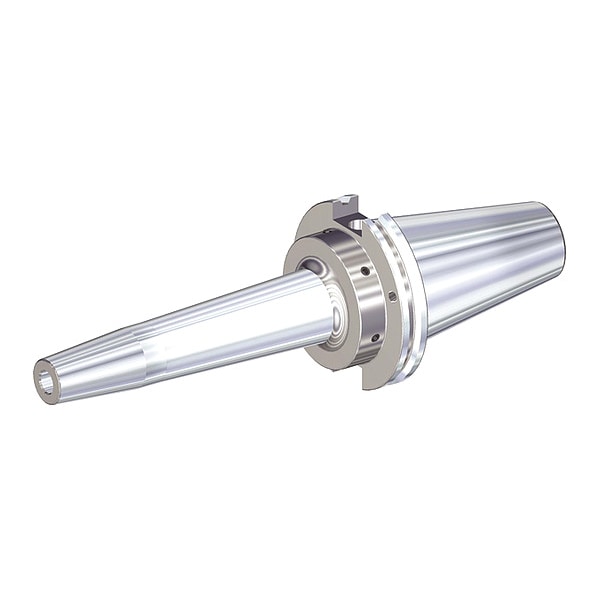

Shrink Fit Tool Holder, U3, CV50
| Item | Shrink Fit Tool Holder and Adapter |
|---|---|
| Taper Size | CV50 |
| Hole Dia. | 20 mm |
| Projection | 203.2 mm |
| Coolant Fed | Coolant Through |
| Series | CV50 |
| Shank Dia. | 33 mm |
| List Number | CV50BHPVTT20M800 |
| For Use With | Carbide and HSS Tools |
| Nose Dia. | 33 mm |
| Features | Balanceable, End Axial Adjustment |
| Overall Length | 304.8 mm |
| Max. Speed | 15,000 rpm |
| Balanced to RPM | G 6.3@15000 rpm |
| Compatible with Product Type | Cutting Tools |
| Tool Depth | 41 mm |
| Measurement System | Metric |
| Standards | ANSI, ISO, ANSI B5.50 |
| Package Quantity | 1 |
