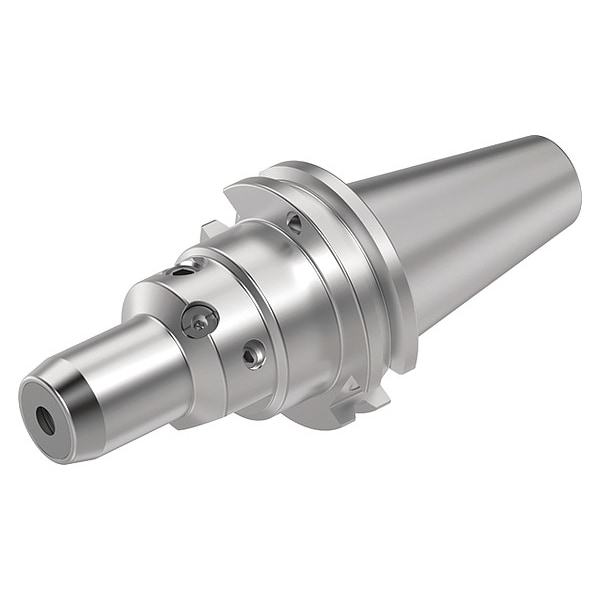

Shrink Fit Tool Holder, U3, HSK40E
| Item | Hydraulic Chuck |
|---|---|
| Bore Dia. | 44.45 mm |
| Taper | CV40 |
| Series | HSK40E ShrinkFit |
| ANSI Number | CV40HC12M375 |
| Nose Dia. | 31.6 mm |
| Coolant Fed | Coolant Through |
| Hole Dia. | 12 mm |
| Balanced to RPM | G 2.5@25000 rpm |
| Overall Length | 163.5 mm |
| Standards | ANSI B5.50 |
| Taper Size | CV40 |
| Tool Depth | 36 mm |
| Shank Dia. | 12 mm |
| Shank Type - Machining | Cylindrical |
| Projection | 95.25 mm |
| Features | Side Axial Adjustment |
| For Use With | CV40 Shank Tools |
| Mounting Length | 36 mm |
| Style | High Performance Line |
| Package Quantity | 1 |
