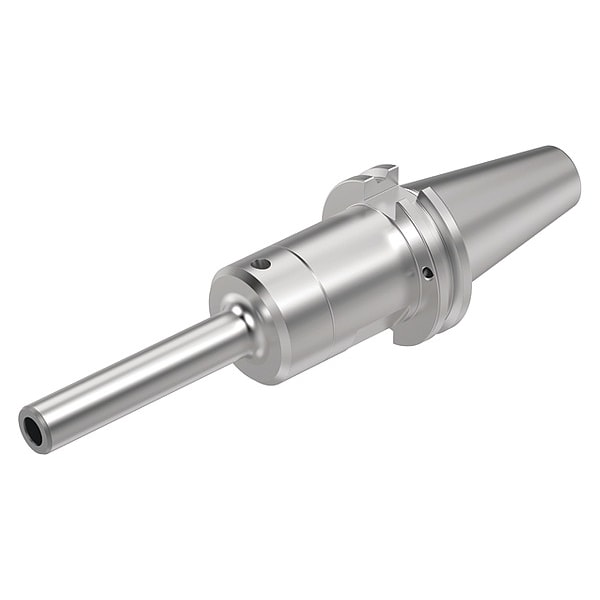

Shrink Fit Tool Holder, U3, HSK63A
| Series | HSK63A ShrinkFit |
|---|---|
| Bore Dia. | 44.45 mm |
| Taper | CV40 |
| Item | Hydraulic Chuck |
| Nose Dia. | 17.5 mm |
| ANSI Number | CV40HCSLT10M669 |
| Tool Depth | 31 mm |
| Shank Dia. | 10 mm |
| Taper Size | CV40 |
| Projection | 170 mm |
| Hole Dia. | 10 mm |
| Shank Type - Machining | Cylindrical |
| Standards | ANSI B5.50 |
| Balanced to RPM | G 2.5@25000 rpm |
| Overall Length | 238.25 mm |
| Coolant Fed | Coolant Through |
| Features | End Axial Adjustment |
| Style | Line |
| For Use With | CAT40 Shank Tools |
| Mounting Length | 31 mm |
| Package Quantity | 1 |
