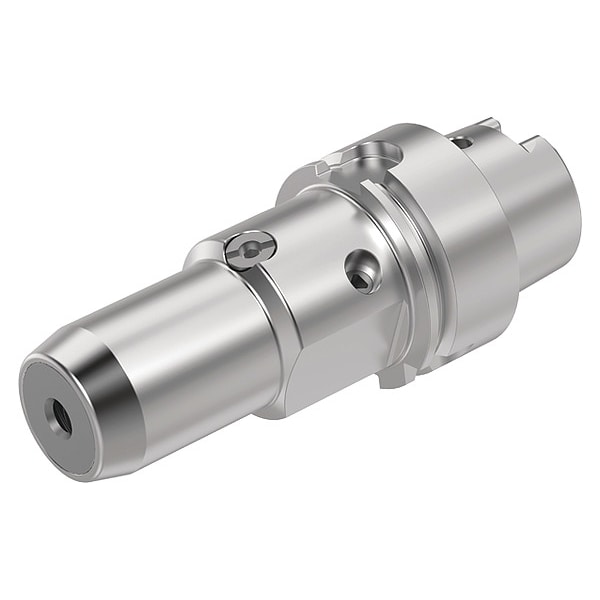

Shrink Fit Tool Holder, U3, HSK63A
| Item | Hydraulic Chuck |
|---|---|
| Taper | HSK50A |
| Series | HSK63A ShrinkFit |
| Bore Dia. | 50 mm |
| ANSI Number | HSK50AHC06080M |
| Nose Dia. | 25.7 mm |
| Standards | DIN 69893 |
| Taper Size | HSK50 |
| Projection | 80 mm |
| Hole Dia. | 6 mm |
| Coolant Fed | Coolant Through |
| Balanced to RPM | G 2.5@15000 rpm |
| Overall Length | 105 mm |
| Tool Depth | 27 mm |
| Shank Type - Machining | Cylindrical |
| Shank Dia. | 6 mm |
| Features | Side Axial Adjustment |
| For Use With | HSK50 Shank Tools |
| Mounting Length | 27 mm |
| Style | Standard HP Line |
| Package Quantity | 1 |
