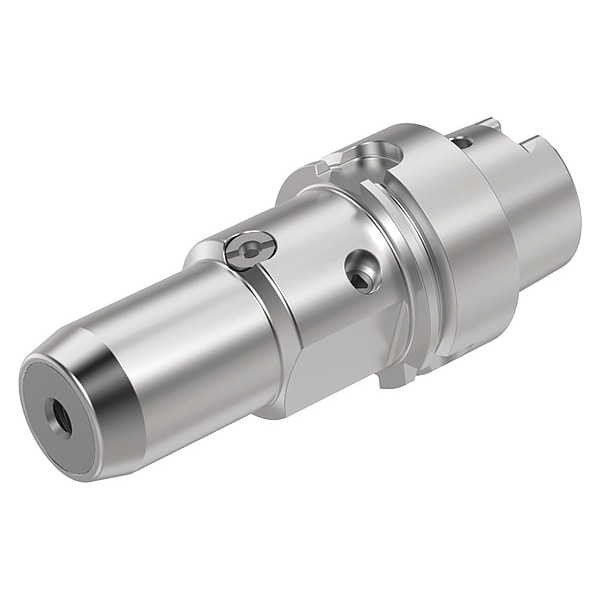

Shrink Fit Tool Holder, U3, HSK63A
| Taper | HSK63A |
|---|---|
| Bore Dia. | 63 mm |
| Item | Hydraulic Chuck |
| Series | HSK63A ShrinkFit |
| Nose Dia. | 31.6 mm |
| ANSI Number | HSK63AHC12090M |
| Standards | DIN 69893 |
| Projection | 90 mm |
| Coolant Fed | Coolant Through |
| Overall Length | 122 mm |
| Shank Type - Machining | Cylindrical |
| Balanced to RPM | G 2.5@25000 rpm |
| Tool Depth | 36 mm |
| Taper Size | HSK63 |
| Shank Dia. | 12 mm |
| Hole Dia. | 12 mm |
| Features | Side Axial Adjustment |
| Mounting Length | 36 mm |
| For Use With | HSK63 Shank Tools |
| Style | Standard HP Line |
| Package Quantity | 1 |
