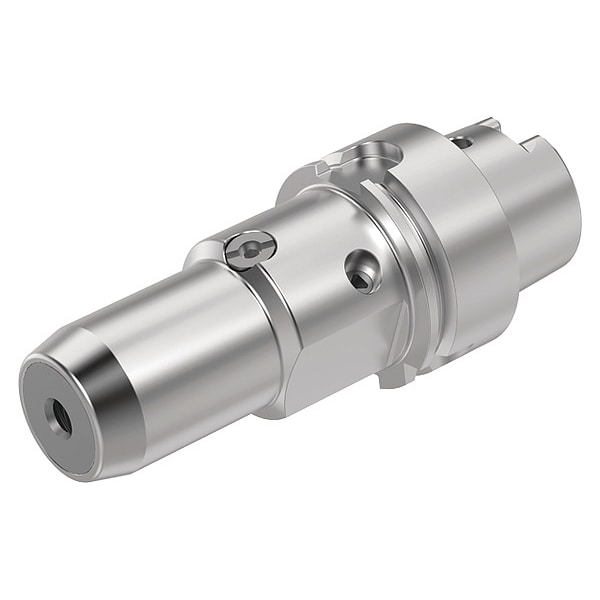

Shrink Fit Tool Holder, U3, SS200
| Series | SS200 |
|---|---|
| Taper | HSK40A |
| Bore Dia. | 40 mm |
| Item | Hydraulic Chuck |
| ANSI Number | HSK40AHC16100M |
| Nose Dia. | 37.54 mm |
| Tool Depth | 39 mm |
| Hole Dia. | 16 mm |
| Shank Type - Machining | Cylindrical |
| Shank Dia. | 16 mm |
| Taper Size | HSK40 |
| Projection | 100 mm |
| Standards | DIN 69893 |
| Overall Length | 150 mm |
| Coolant Fed | Coolant Through |
| Features | Side Axial Adjustment |
| Balanced to RPM | G 6.3@15000 rpm |
| Style | Standard HP Line |
| Mounting Length | 39 mm |
| For Use With | HSK40 Shank Tools |
| Package Quantity | 1 |
