Straight Line Clamp, 700 lbf., Steel

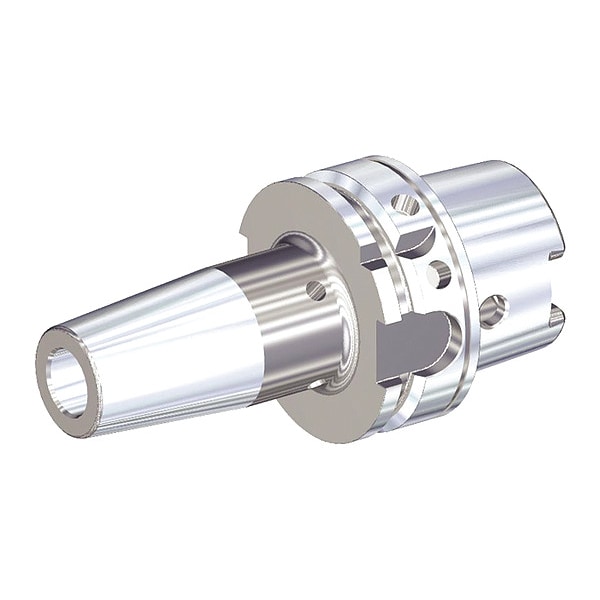

| Item | Shrink Fit Tool Holder and Adapter |
|---|---|
| Coolant Fed | Coolant Through |
| Hole Dia. | 25 mm |
| Shank Dia. | 44 mm |
| For Use With | Carbide and HSS Tools |
| Projection | 115 mm |
| List Number | HSK63AHPVTTMQL1C25115M |
| Taper Size | HSK63A |
| Nose Dia. | 44 mm |
| Overall Length | 6.68 in |
| Max. Speed | 25,000 rpm |
| Features | Balanceable, End Axial Adjustment |
| Includes | Jam Nut |
| Balanced to RPM | G 2.5 @ 25,000 rpm |
| Tool Depth | 44 mm |
| Compatible with Product Type | Carbide and HSS Cutting Tools |
| Standards | DIN 69893 |
| Measurement System | Metric |
| Package Quantity | 1 |
