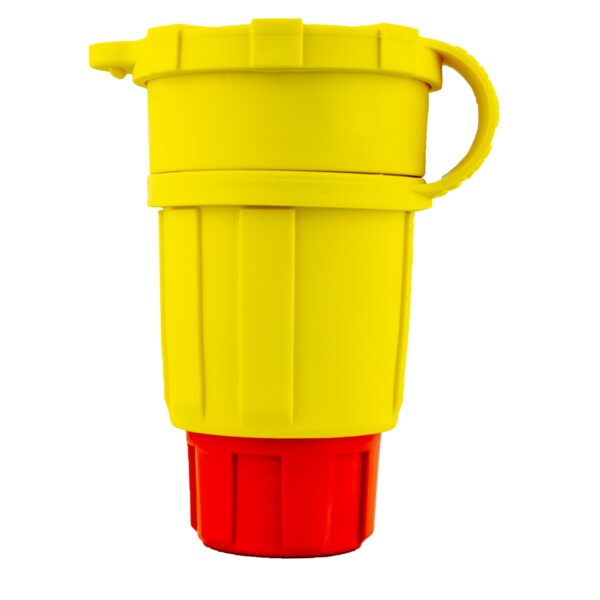

Conector de bloqueo de 20A con 2 polos, 3 cables y 277VAC L7-20R YL. Ideal para aplicaciones industriales y comerciales que requieren un alto nivel de seguridad y rendimiento.
| Color | Yellow |
|---|---|
| NEMA Rating | 12, 4, 4X, 6, 6P |
| Number of Wires | 3 |
| Voltage - Plugs and Receptacles | 277 V AC |
| Amps | 20 |
| Item | Locking Connector |
| Wiring Style | Standard |
| Standards | CSA Certified C22.2 No. 42 File 31943, NSF/ANSI/3-A 14159-1, UL Listed to ANSI/UL 498 File E17740 |
| Corrosion Resistant | No |
| Antimicrobial | Yes |
| Number of Poles | 2 |
| Voltage | 277VAC |
| Grade | Industrial |
| Item - Plugs and Receptacles | Watertight Locking Connector |
| Phase | Three |
| Grade - Plugs and Receptacles | Industrial |
| Color - Plugs and Receptacles | Yellow |
| Amps - Plugs and Receptacles | 20 |
| Shrouded / Non-Shrouded | Shrouded |
| NEMA Configuration | L7-20 |
| Power Indicator | No |
| Cord Size | 0.47 to 0.72 in |
| NEMA Plug Configuration - Plugs and Receptacles | L7-20R |
| IP Rating | IP69K |
| Material | Elastomer |
| HP | 2 |
| Insulation Material | Thermoplastic |
| NEMA Receptacle Configuration | L7-20R |
| Housing Material | Thermoplastic Elastomer |
| Current Rating | 20 A |
| Midget Locking | No |
| Horsepower Rating | 2 HP |
| For Maximum Cable Diameter | 0.72 in |
| NEMA Enclosure Rating | 12, 4, 4X, 6, 6P |
| Power Indicating Light | No |
| Market | Industrial |
| Voltage Rating | 277 V |
| Housing Color | Yellow |
| Resistance Properties | Antimicrobial |
| For Environment | Washdown |
| For Minimum Cable Diameter | 0.47 in |
| Shrouded | Yes |
| Blade Style | Locking |
| Environmental Rating | Watertight |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| Poles / Wires | 2P/3W |
| Sub Brand / Trademark | Perma-Kleen |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| NSF | NSF/ANSI/3-A 14159-1 |
| Device Type | Connector |
| Package Quantity | 1 |
