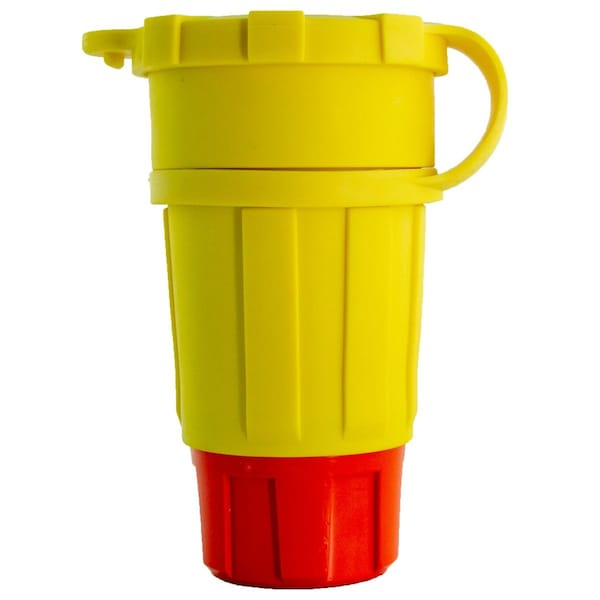

20A Locking Connector 3P 4W 480VAC L16-20R YL
| Item | CONN L16-20 LCKING 480V 20A PERMA-KLEEN |
|---|---|
| Item - Plugs and Receptacles | Watertight Connector |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L16-20R |
| Amps | 20 |
| Voltage - Plugs and Receptacles | 480V AC |
| Voltage | 480VAC |
| Number of Poles | 3 |
| NEMA Configuration | L16-20 |
| Number of Wires | 4 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Yellow |
| Shrouded / Non-Shrouded | Shrouded |
| Color | Yellow |
| Grade - Plugs and Receptacles | Industrial |
| IP Rating | IP69K |
| HP | 5.0 |
| Antimicrobial | Yes |
| Grade | Industrial |
| Power Indicator | No |
| Standards | CSA Certified C22.2 No. 42 File 31943, NSF/ANSI/3-A 14159-1, UL Listed to ANSI/UL 498 File E17740 |
| Cord Size | 0.56 to 0.77 in |
| Material | Thermoplastic Elastomer |
| NEMA Rating | 12, 4, 4X, 6, 6P |
| Phase | Three |
| Corrosion Resistant | No |
| Insulation Material | Thermoplastic |
| Shrouded | Yes |
| Housing Color | Yellow |
| For Maximum Cable Diameter | 0.77 in |
| Housing Material | Thermoplastic Elastomer |
| Power Indicating Light | No |
| Horsepower Rating | 5 HP |
| Midget Locking | No |
| NEMA Enclosure Rating | 4, 4X, 6, 6P, 12 |
| Resistance Properties | Antimicrobial |
| For Minimum Cable Diameter | 0.56 in |
| For Environment | Washdown |
| Current Rating | 20 A |
| NEMA Receptacle Configuration | L16-20R |
| Voltage Rating | 480V AC |
| Market | Industrial |
| Blade Style | Locking |
| NSF | NSF/ANSI/3-A 14159-1 |
| Environmental Rating | Watertight |
| Poles / Wires | 3P/4W |
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| Case Qty | 27 |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| Sub Brand / Trademark | Perma-Kleen |
| Device Type | Connector |
| Package Quantity | 1 |
