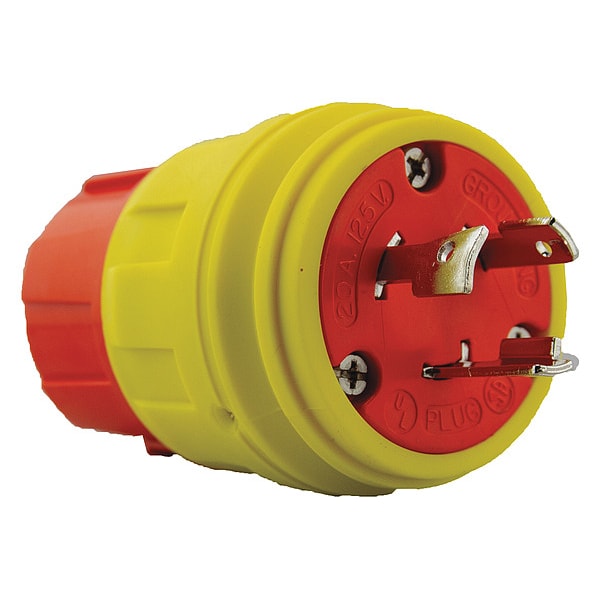

20A Watertight Locking Plug 2P 3W 125VAC L5-20P YL
| Item | Watertight Locking Plug |
|---|---|
| Item - Plugs and Receptacles | Watertight Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-20P |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| NEMA Rating | 4, 4X, 12, 6, 6P |
| Corrosion Resistant | Yes |
| HP | 1 |
| Cord Size | 0.47 to 0.72 in |
| Amps | 20 |
| Voltage | 125VAC |
| Material | Thermoplastic Elastomer |
| Special Features | Corrosion resistant |
| Antimicrobial | Yes |
| NEMA Configuration | L5-20 |
| Color - Plugs and Receptacles | Yellow, Orange |
| IP Rating | IP69K |
| Grade | Industrial |
| Color | Yellow |
| Standards | ANSI/UL 498 File E17740, CSA Certified C22.2 No. 42, NSF/ANSI/3-A 14159-1 |
| Housing Color | Yellow |
| Number of Blades | 3 |
| Housing Material | Elastomer |
| For Maximum Cable Diameter | 0.72 in |
| Current Rating | 20 A |
| NEMA Plug Configuration | L5-20P |
| Shrouded | Yes |
| For Minimum Cable Diameter | 0.47 in |
| Market | Industrial |
| Horsepower Rating | 1 HP |
| For Environment | Washdown |
| Resistance Properties | Antimicrobial, Corrosion Resistant |
| Voltage Rating | 125V AC |
| Case Qty | 45 |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| Environmental Rating | Watertight |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| Poles / Wires | 2P/3W |
| Sub Brand / Trademark | Perma-Kleen |
| Device Type | Plug |
| NSF | NSF/ANSI/3-A 14159-1 |
| Blade Style | Locking |
| Package Quantity | 1 |
