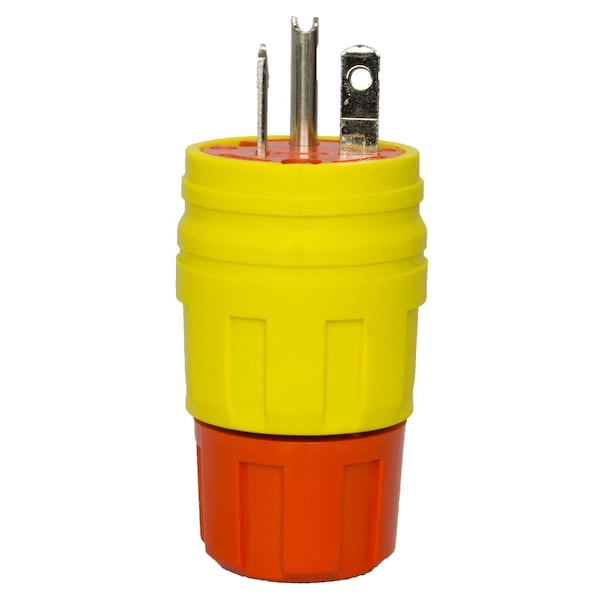

3 Wire Industrial Straight Blade Plug 250VAC 20A
| Item - Plugs and Receptacles | Watertight Straight Blade Plug |
|---|---|
| Item | Watertight Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 6-20P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | Yes |
| Color | Yellow |
| Number of Poles | 2 |
| Material | Thermoplastic Elastomer |
| Grade | Industrial |
| Standards | CSA Certified C22.2 No. 42 File 31943, NSF/ANSI/3-A 14159-1, UL Listed to ANSI/UL 498 File E17740 |
| Color - Plugs and Receptacles | Yellow |
| Amps | 20 |
| Special Features | Corrosion resistant |
| Cord Size | 0.3 to 5/8 in |
| Voltage | 250VAC |
| HP | 2 |
| Phase | Single |
| IP Rating | IP69K |
| Corrosion Resistant | Yes |
| Insulation Material | Elastomer |
| For Minimum Cable Diameter | 0.3 in |
| Housing Color | Yellow |
| Number of Blades | 3 |
| Resistance Properties | Antimicrobial |
| Horsepower Rating | 2 HP |
| NEMA Plug Configuration | 6-20P |
| Housing Material | Thermoplastic Elastomer |
| Connection Orientation | Straight |
| Market | Industrial |
| Current Rating | 20 A |
| For Maximum Cable Diameter | 5/8 in |
| Voltage Rating | 250V AC |
| For Environment | Washdown |
| NSF | NSF/ANSI/3-A 14159-1 |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| Device Type | Plug |
| Environmental Rating | Watertight |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| Blade Style | Locking |
| Sub Brand / Trademark | Perma-Kleen |
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| Case Qty | 100 |
| Poles / Wires | 3W, 2P |
| Package Quantity | 1 |
