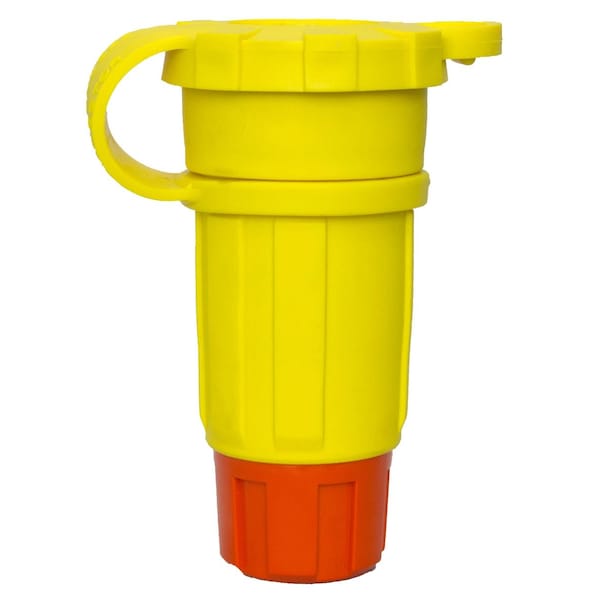

Connector, Industrial, 6-15R, 15A, 250VAC
| Item | Watertight Straight Blade Connector |
|---|---|
| Color | Yellow |
| Grade - Plugs and Receptacles | Industrial |
| Grade | Industrial |
| Amps - Plugs and Receptacles | 15 |
| Material | Thermoplastic Elastomer |
| Number of Poles | 2 |
| Special Features | Corrosion resistant |
| HP | 1 1/2 hp |
| Number of Wires | 3 |
| Standards | ANSI, CSA Certified C22.2 No. 42 File 31943, NSF, NSF/ANSI/3-A 14159-1, UL 498 File E17740, UL Listed |
| Phase | Single |
| Voltage | 250VAC |
| Item - Plugs and Receptacles | Watertight Straight Blade Connector |
| IP Rating | IP65, IP66, IP67 |
| Antimicrobial | Yes |
| Wiring Style | Standard |
| Cord Size | 0.3 to 5/8 in |
| NEMA Plug Configuration - Plugs and Receptacles | 6-15R |
| Voltage - Plugs and Receptacles | 250 V AC |
| Corrosion Resistant | Yes |
| Amps | 15 |
| Power Indicator | No |
| Color - Plugs and Receptacles | Yellow |
| For Environment | Washdown |
| Market | Industrial |
| Horsepower Rating | 1.5 HP |
| For Minimum Cable Diameter | 0.3 in |
| Voltage Rating | 250 V AC |
| Housing Material | Thermoplastic Elastomer |
| Housing Color | Yellow |
| NEMA Receptacle Configuration | 6-15R |
| Current Rating | 15 A |
| Power Indicating Light | No |
| Resistance Properties | Antimicrobial, Corrosion Resistant |
| For Maximum Cable Diameter | 0.63 in |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| NSF | NSF/ANSI/3-A 14159-1 |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| Environmental Rating | Watertight (IP69K) |
| Device Type | Connector |
| Sub Brand / Trademark | Perma-Kleen |
| Blade Style | Locking |
| Case Qty | 50 |
| Poles / Wires | 2P/3W |
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| Package Quantity | 1 |
