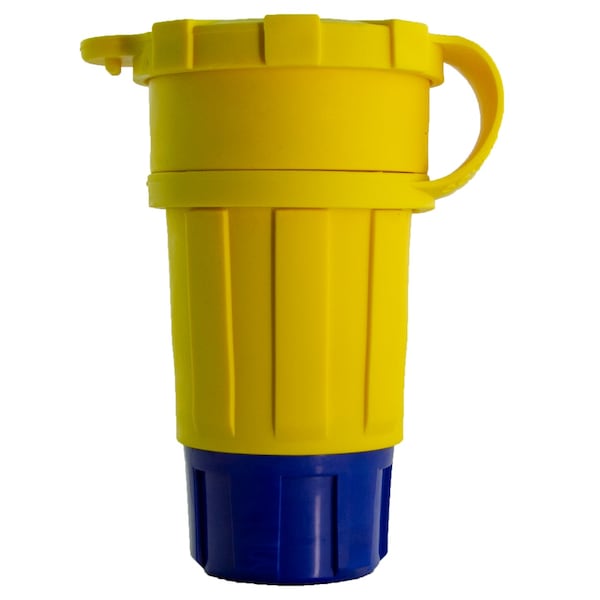

Connector Nema L14-20, Perma-Tite Extrem
| Phase | 1 |
|---|---|
| Color | Yellow |
| Item | Connector Nema L14-20,Perma-Tite Extrem |
| Voltage | 125/250V |
| NEMA Configuration | NEMA L14-20 |
| Amps | 20 |
| Poles / Wires | 3P/4W |
| Environmental Rating | Watertight |
| Device Type | Connector |
| NSF | NSF/ANSI/3-A 14159-1 |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| Blade Style | Locking |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| Sub Brand / Trademark | Perma-Tite |
| Package Quantity | 1 |
